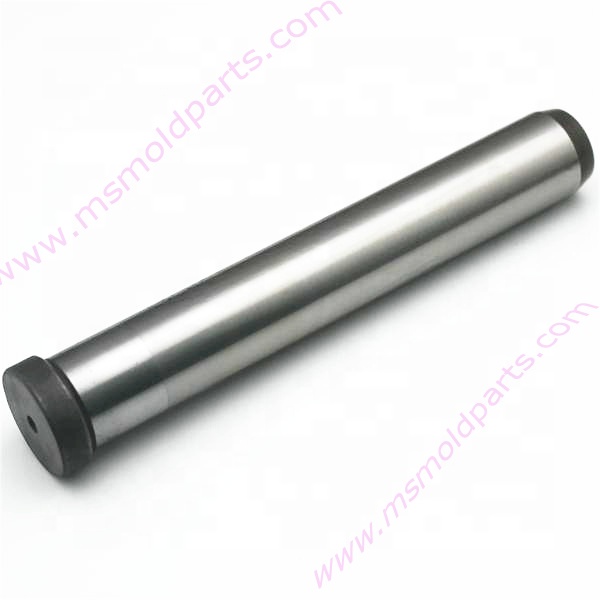

case hardened shouldered guide pillar

new arrival case hardened shouldered guide pillar sets

ms mold parts
A standard precision component for mold alignment, known for strict dimensional accuracy and reliability. Includes case-hardened shouldered types for axial positioning and is often supplied in complete guide pillar sets. Ensures perfect alignment and durability in demanding molding applications, with full CAD data support.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD15.00 / piece
Contact Now
add to cart

  • Product Overview
    MISUMI guide pillars represent industry-standard precision alignment components for mold and machinery applications. Designed with rigorous engineering standards, these components form the foundation of reliable guide pillar sets, with case hardened shouldered guide pillars providing exceptional durability and positional accuracy for demanding production environments.

    Core Features & Advantages

  • Precision Engineering & Standardization

    • Manufactured to JIS standard dimensions with micron-level accuracy

    • Full interchangeability with original MISUMI specifications

    • Comprehensive size ranges from 10mm to 80mm diameters

  • Enhanced Durability & Wear Resistance

    • Case hardened shouldered guide pillars undergo specialized heat treatment

    • Surface hardness reaches HRC 58-62 with tough core material

    • Precision grinding ensures consistent surface finish (Ra 0.8μm max)

  • Complete System Solutions

    • Available as individual components or matched guide pillar sets

    • Shouldered design provides accurate axial positioning

    • Perfect compatibility with standard guide bushings

  • Technical Specifications

  • Material: SUJ2 bearing steel equivalent

  • Heat Treatment: Case hardening with surface hardening

  • Standard Sizes: Diameters 10-80mm, lengths 100-500mm

  • Hardness: HRC 58-62 surface hardness

  • Accuracy: h6 tolerance grade

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
