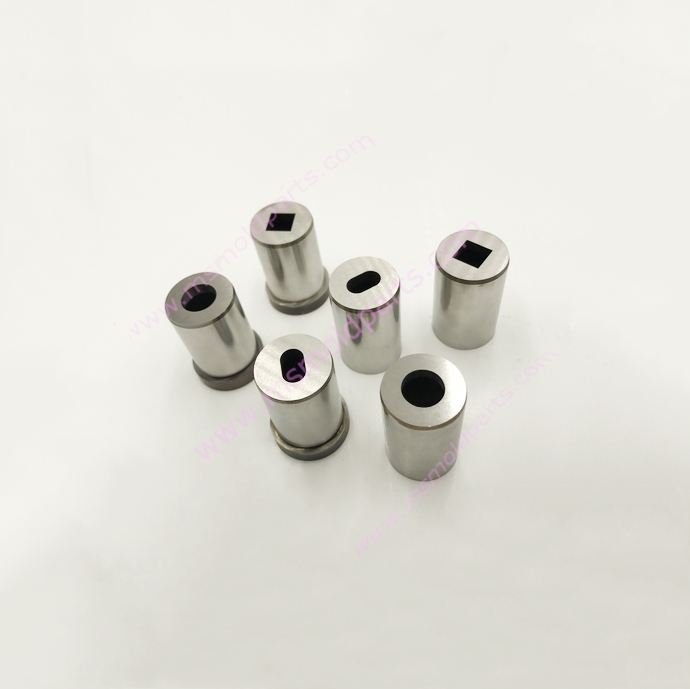

headless die buttons

No head die Sterben buttons special die mould

ms mold parts
Headless die buttons (flat-top design) and custom-engineered special die molds, designed for complex stamping or forming processes. Made of high-strength materials (e.g., tool steel, carbide), they feature high hardness (HRC 58-64), precise dimensions (±0.002mm tolerance), and customized structures to meet specialized needs such as irregular hole punching and high-speed stamping, ensuring stability and long service life.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Headless Die Buttons represent the pinnacle of precision and versatility in modern die manufacturing. This comprehensive product line integrates specialized headless die buttons with fully custom special die molds and ultra-precision die button solutions, delivering exceptional performance in complex stamping and molding applications. Engineered to meet the most demanding specifications, these components provide unmatched accuracy, durability, and customization capabilities for advanced manufacturing operations.

    Key Features

  • Headless Design Excellence

    • Flush-mounted configuration for space-constrained applications

    • Uniform stress distribution throughout the component

    • Enhanced stability in high-pressure operations

  • Custom Special Mold Capabilities

    • Tailored geometries for unique production requirements

    • Complex cavity and core designs

    • Multi-material compatibility options

  • Precision Manufacturing Standards

    • Micro-machined surfaces achieving Ra 0.1μm finish

    • Dimensional tolerances maintained within ±0.002mm

    • Perfect geometric accuracy for seamless integration

  • Technical Specifications

  • Materials: Tool Steel D2, H13, Tungsten Carbide

  • Hardness: HRC 58-64 (steel), HRA 88-92 (carbide)

  • Surface Finish: Ra 0.1-0.4μm

  • Standard Sizes: 5-100mm diameters

  • Custom Configurations: Unlimited design possibilities

  • Temperature Resistance: Up to 600°C (material dependent)

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
