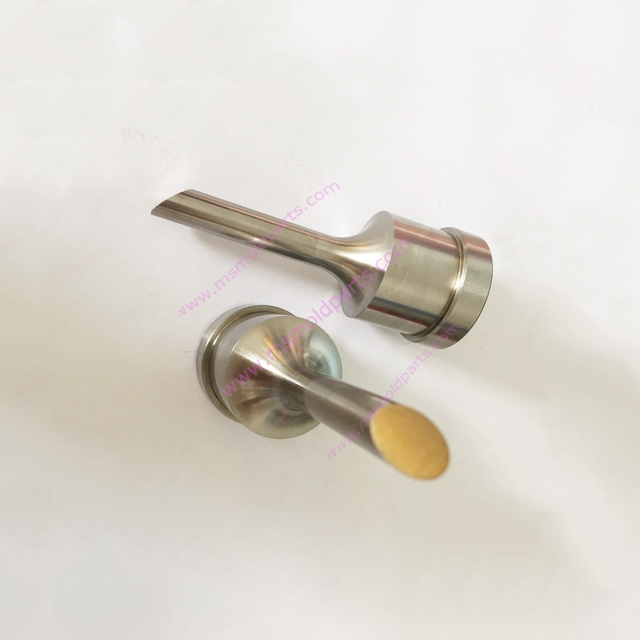

Precision Die Tools Special Shape HSS/SKH51/SKH11 Punch

ms mold parts
A custom-designed tool used in stamping or punching dies to create unique shapes, holes, or features in materials. Made from hardened steel (e.g., HSS, SKH51) and tailored to specific production needs, it enables precise, non-standard cutting or forming in metalworking and manufacturing processes.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Special Punch represents the pinnacle of custom tooling innovation, designed to meet unique and demanding stamping requirements. As specialized die tools, these punches are engineered for applications where standard solutions cannot achieve the desired results. Whether you need complex geometries, specific angles, or unique tip configurations, our special punches deliver uncompromising precision and durability.

    Key Features

  • Custom Engineering Capabilities

    • Tailored to exact specifications and unique geometries

    • Complex shapes including stepped, angled, and multi-level designs

    • Prototype development and rapid customization services

  • Premium Material Selection

    • High-Speed Steel (HSS M2/M35)

    • Powder Metallurgy Steel (ASP-23/30)

    • Tungsten Carbide options available

    • Special surface treatments (TiN, TiCN, TiAlN coatings)

  • Precision Manufacturing

    • CNC grinding with ±0.005mm tolerance

    • Micro-grain structure for enhanced toughness

    • Optimized cutting edge geometry

  • Technical Specifications

  • Materials: HSS, PM Steel, Tungsten Carbide

  • Hardness: HRC 62-67 (depending on material)

  • Standard Diameters: 1.0-50.0mm

  • Length Options: Customized to application

  • Surface Treatments: TiN, TiCN, TiAlN, DLC

  • Temperature Resistance: Up to 600°C (with specialized coatings)

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
