Our Oblong Punch, Cutting Edge Punch, and Oblong Punch and Die Set offer precision and durability for high-volume cutting and punching. Ideal for die-cutting, metal forming, and precision manufacturing, they ensure smooth cuts and long tool life.

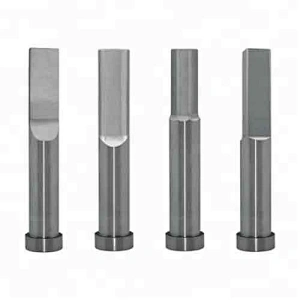

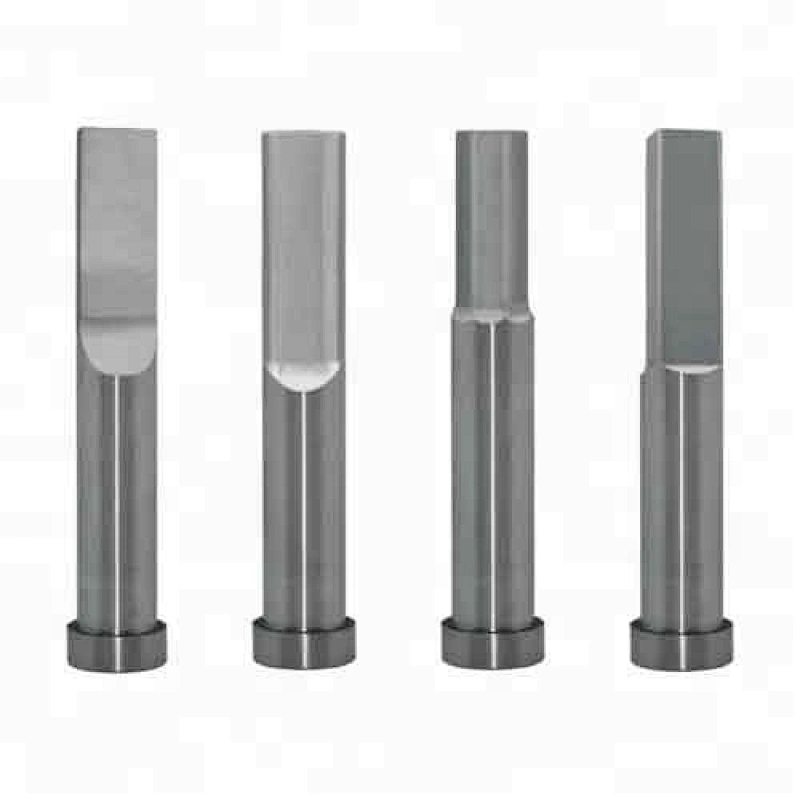

Precision flat shank oblong punch for die molds Cutting edge Punch

MS-020

The Precision Flat Shank Oblong Punch for Die Molds and Cutting Edge Punch are engineered for high-accuracy cutting and shaping in die molds. These punches ensure smooth operation, enhanced durability, and reliable performance in high-volume stamping and molding applications.

Delivery

FOB

minimum order

1 piece

Supply Ability

10000.0piece / Month

Country of Origin

ShenZhen GuangZhou

Quantity:

USD0.10 - USD3.00 / piece

Contact Now

add to cart

OurPrecision Flat Shank Oblong Punch for Die MoldsandCutting Edge Punch are meticulously engineered to meet the demands of high-precision cutting and forming in die molds. Crafted from high-quality materials, these punches deliver superior durability, smooth operation, and exceptional performance in high-volume manufacturing environments.

Key Features:

Precision Flat Shank Design: The flat shank design ensures a secure fit in die molds, providing stable performance during high-precision punching and cutting operations.
Cutting Edge Technology: With an advanced cutting edge, these punches provide smooth, consistent cuts, reducing the need for frequent replacements and improving production efficiency.
Durability and Longevity: Made from premium materials, these punches are resistant to wear and corrosion, ensuring long-lasting performance even under heavy-duty, high-speed conditions.
Enhanced Mold Performance: The precision flat shank oblong punchandcutting edge punch work seamlessly together to deliver clean, accurate cuts, improving the quality and consistency of your molded parts.

Benefits:

Improved Efficiency: These punches are designed for high-volume production, providing reduced cycle times and minimizing downtime during punching and molding operations.
Reduced Tool Wear: The cutting edge punch minimizes wear and tear on tooling, extending tool life and reducing maintenance costs.
Versatile Applications: Ideal for die molds,metal forming, and die-cutting, making them suitable for a variety of industries, including automotive, electronics, and packaging.

Applications:

Die Molds: Ensures precise punching and cutting, crucial for maintaining mold integrity and quality.
Metal Forming: Ideal for metal forming operations, providing clean and accurate cuts in metals and other materials.
Die-Cutting: The precise cutting edge ensures minimal material waste and high-quality die-cut parts.

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

Our Mainly Parts

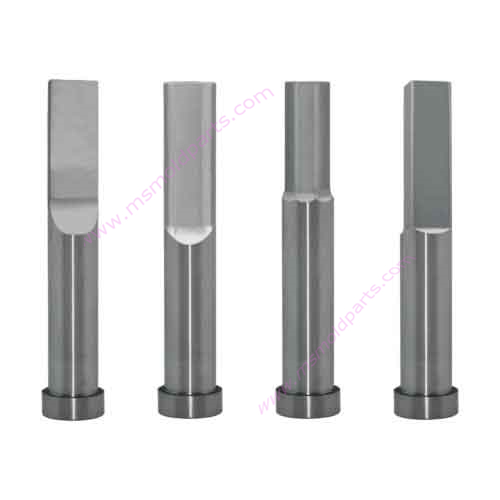

Precison Flat Shank Oblong Punch

Exhibition

Factory Equipment

OUR More Parts

Packing & Delivery

Certifications

The Precision Flat Shank Oblong Punch for Die Molds and Cutting Edge Punch are essential tools in precision molding, cutting, and forming processes. These punches are designed to improve productivity and ensure high-quality, consistent results in various high-precision manufacturing environments.

1. Die Molding Applications

In die molding, the Precision Flat Shank Oblong Punch ensures precise cutting and shaping of materials, maintaining the integrity of the mold while reducing wear. It provides accurate alignment, which enhances the quality of finished molded parts and optimizes mold efficiency.

2. Metal Forming

These punches are perfect for metal forming operations, where accurate and clean cuts are crucial. The Cutting Edge Punch guarantees smooth, high-quality cuts in a variety of metals, ensuring high efficiency and reducing the need for frequent tool maintenance.

3. Die-Cutting

The cutting edge punch is ideal for die-cutting tasks, where high precision is needed. It ensures clean cuts with minimal scrap, improving material yield and reducing production costs. These punches are essential in industries such as automotive, electronics, and packaging.

4. High-Volume Production

Designed for high-volume production, the Precision Flat Shank Oblong Punch and Cutting Edge Punch enhance operational efficiency by reducing downtime and improving cycle times. Their durability and precision help maintain consistent performance throughout the production process.

5. Custom Tooling Solutions

These punches can be customized to meet the unique requirements of various industries. Whether used for precision molding, metal forming, or die-cutting, they provide reliable, long-lasting performance tailored to specific tooling needs.
