special punch

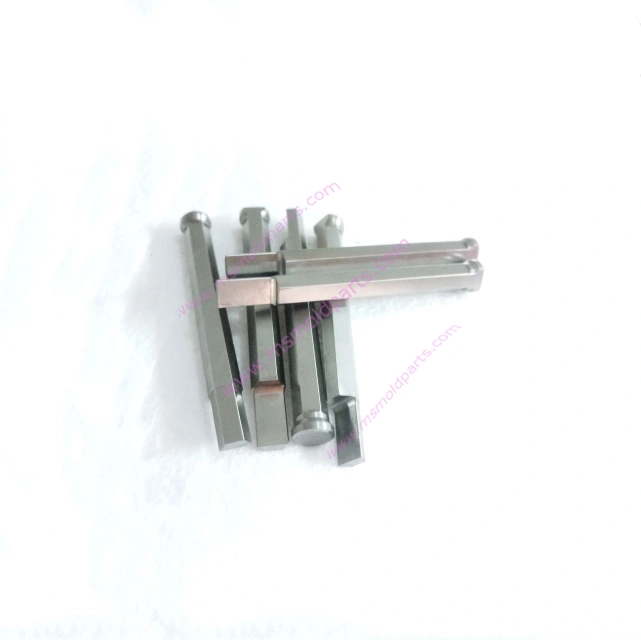

Precision special shape punch with trapezoid Shapes

ms mold parts
A custom-engineered tool designed for unique stamping or punching applications, featuring non-standard shapes (e.g., trapezoidal, hexagonal, or complex geometries). Made from hardened materials like HSS or carbide, it enables precise cutting, forming, or perforating of specialized parts in metalworking and manufacturing.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Shapes Punches represent the cutting edge of custom tooling technology, designed to meet the most demanding and unique stamping requirements. These specialized punches go beyond standard circular designs to include complex geometries, custom profiles, and intricate shapes that enable manufacturers to achieve precise, repeatable results in specialized forming and cutting operations.

    Key Features

  • Complex Geometry Capability

    • Custom profiles including trapezoidal, hexagonal, and irregular shapes

    • Multi-level and stepped configurations for complex forming operations

    • Precision-engineered cutting edges for clean, burr-free results

  • Advanced Material Technology

    • High-Speed Steel (HSS M2/M35) for superior wear resistance

    • Powder Metallurgy Steel (ASP-23/30) for enhanced toughness

    • Tungsten Carbide options for extreme wear applications

    • Special surface coatings (TiN, TiCN, TiAlN) for extended tool life

  • Precision Manufacturing Excellence

    • CNC grinding technology ensuring ±0.005mm tolerances

    • Micro-grain structure optimization for maximum edge retention

    • Custom heat treatment protocols for specific application needs

  • Technical Specifications

  • Materials Available: HSS, PM Steel, Tungsten Carbide

  • Hardness Range: HRC 62-67 (depending on material selection)

  • Standard Size Range: 2.0-50.0mm (custom sizes available)

  • Surface Treatments: TiN, TiCN, TiAlN, DLC coatings

  • Temperature Resistance: Up to 600°C with specialized coatings

  • Profile Complexity: Unlimited custom geometries

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
