Key Features:

• MISUMI Compatibility: Fully compatible with MISUMI press die components, ensuring easy replacement and integration into existing systems.
• Custom Shape Design: Custom shape hole punch options tailored to unique project requirements, including complex geometries and sizes.
• AlCrN Coating: The AlCrN coating provides extreme surface hardness (up to 3,200 HV), heat resistance (up to 1,100°C), and reduced friction for extended tool life.
• Premium Materials: Made from high-grade tool steel (e.g., SKD11, SLD) or carbide, ensuring toughness and stability under high-stress conditions.
• Precision Engineering: Manufactured to tight tolerances (±0.01mm) for accurate and consistent performance in precision punching operations.

Applications:

• Progressive die stamping systems
• Precision blanking and piercing operations
• Automotive and aerospace component manufacturing
• Electronics and consumer goods production
• High-volume industrial stamping

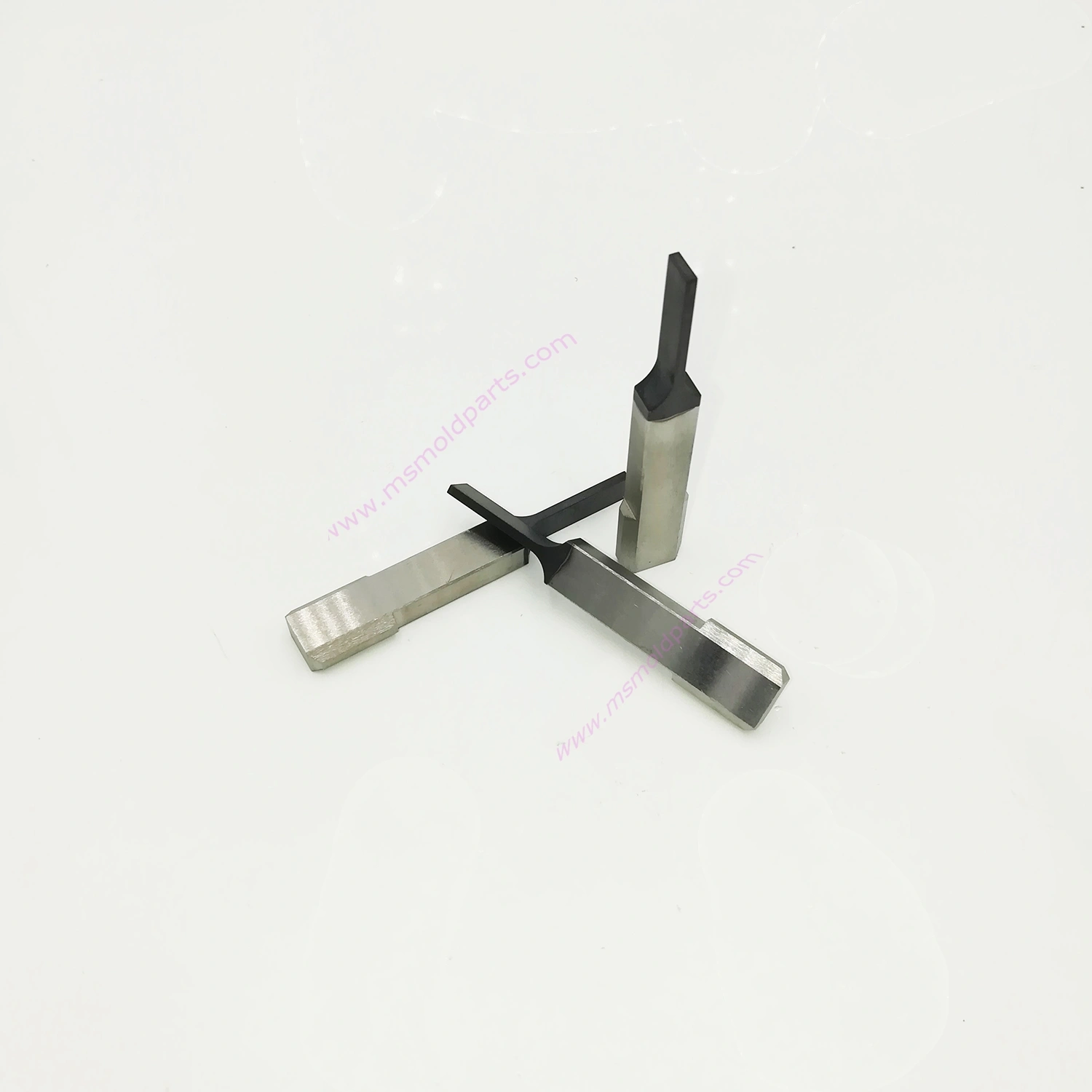

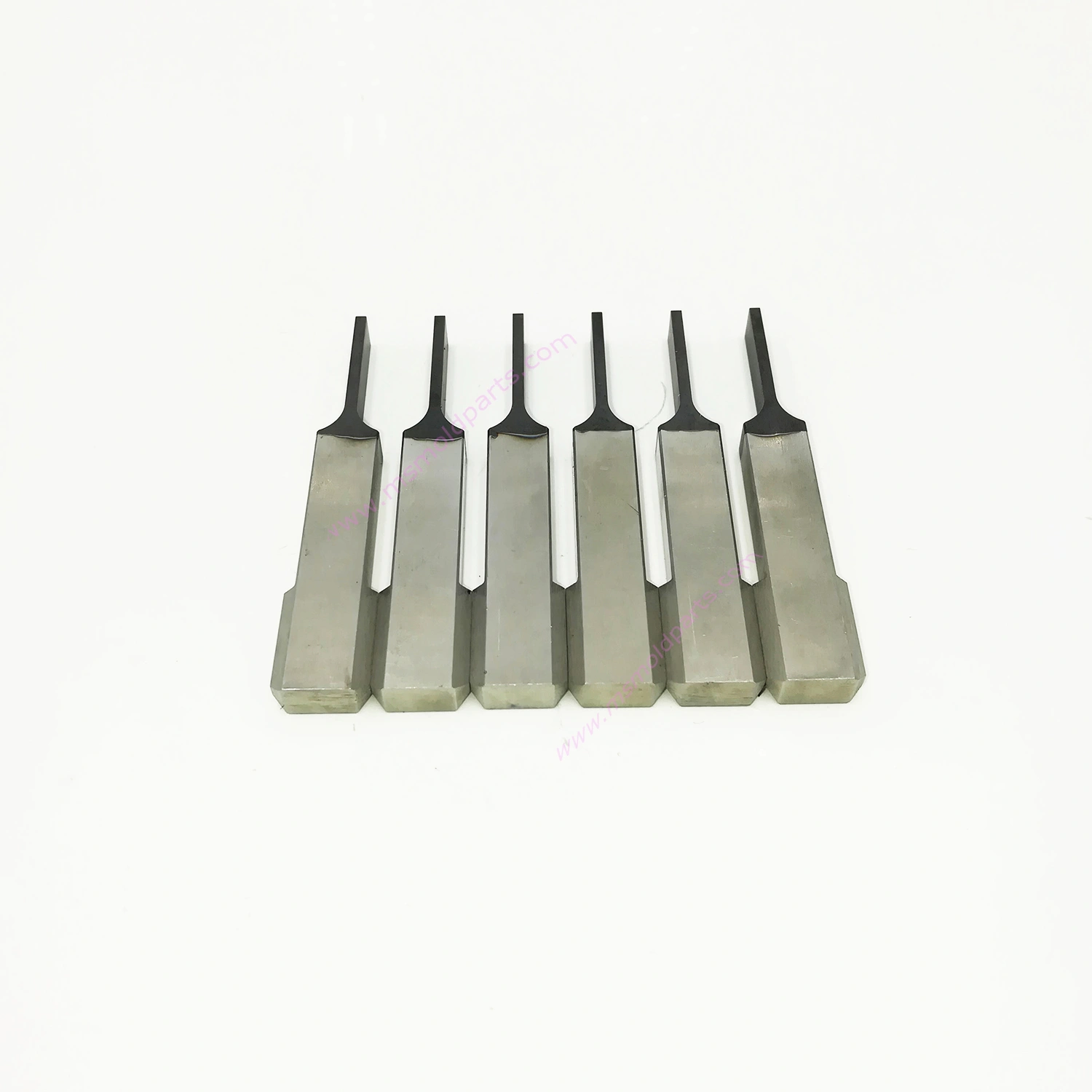

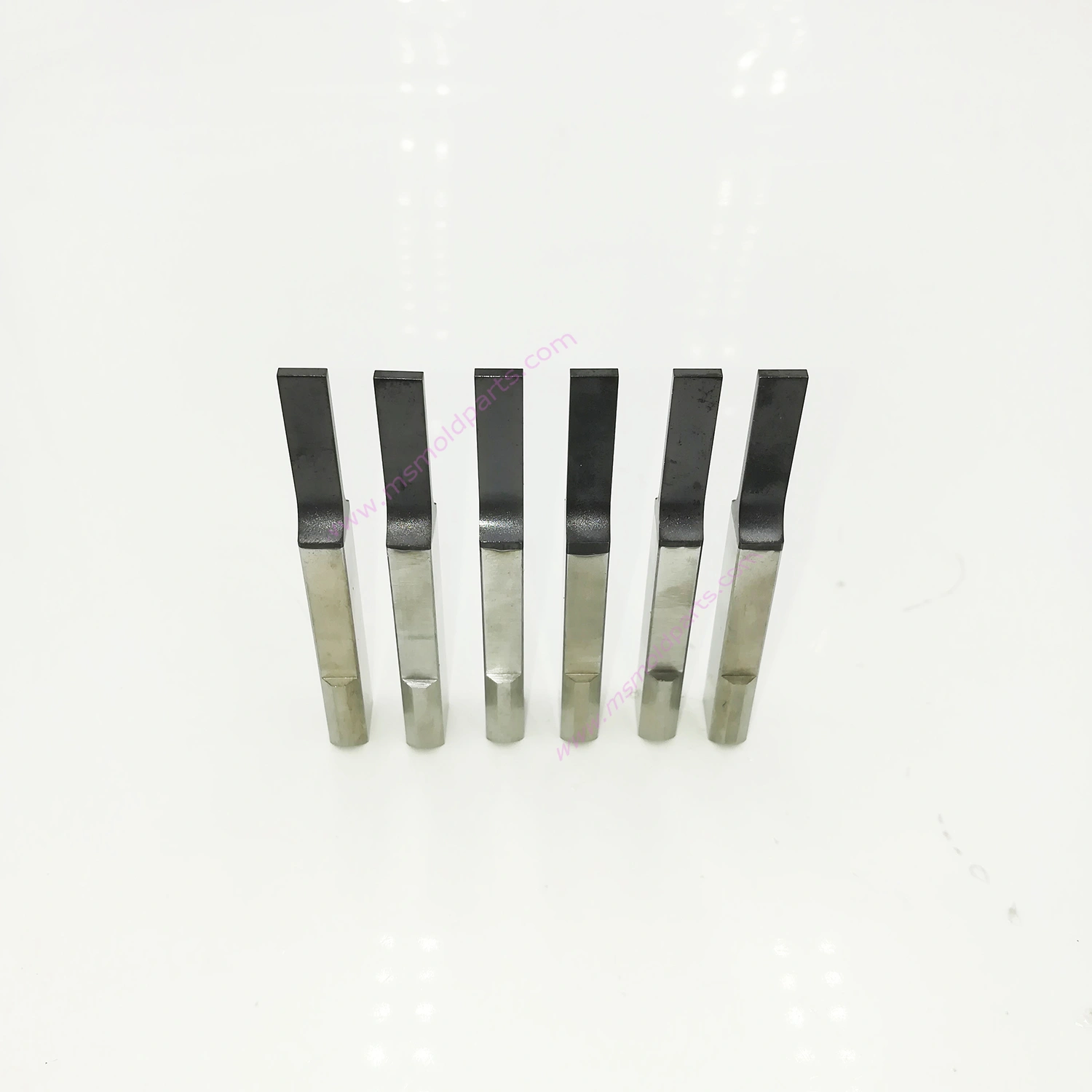

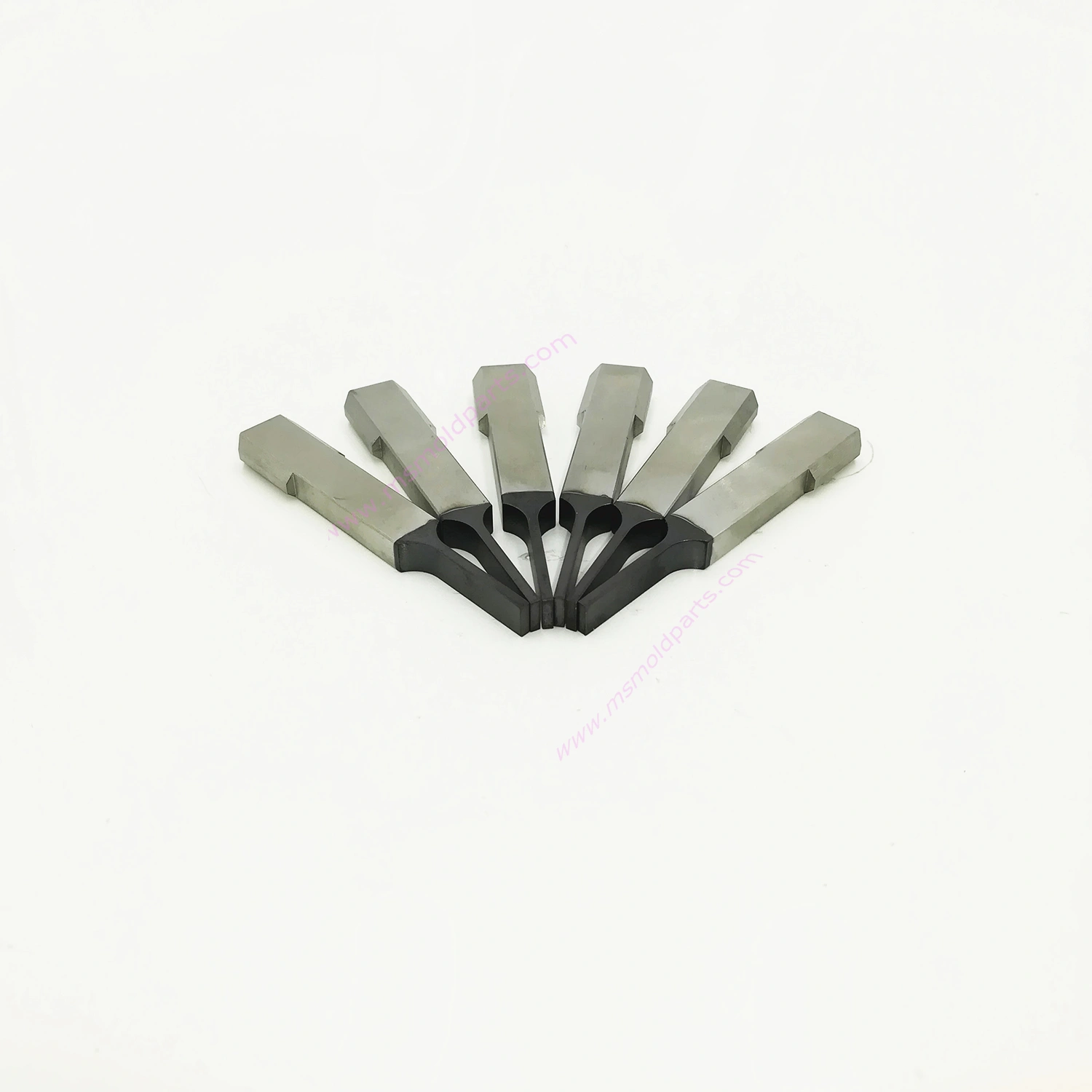

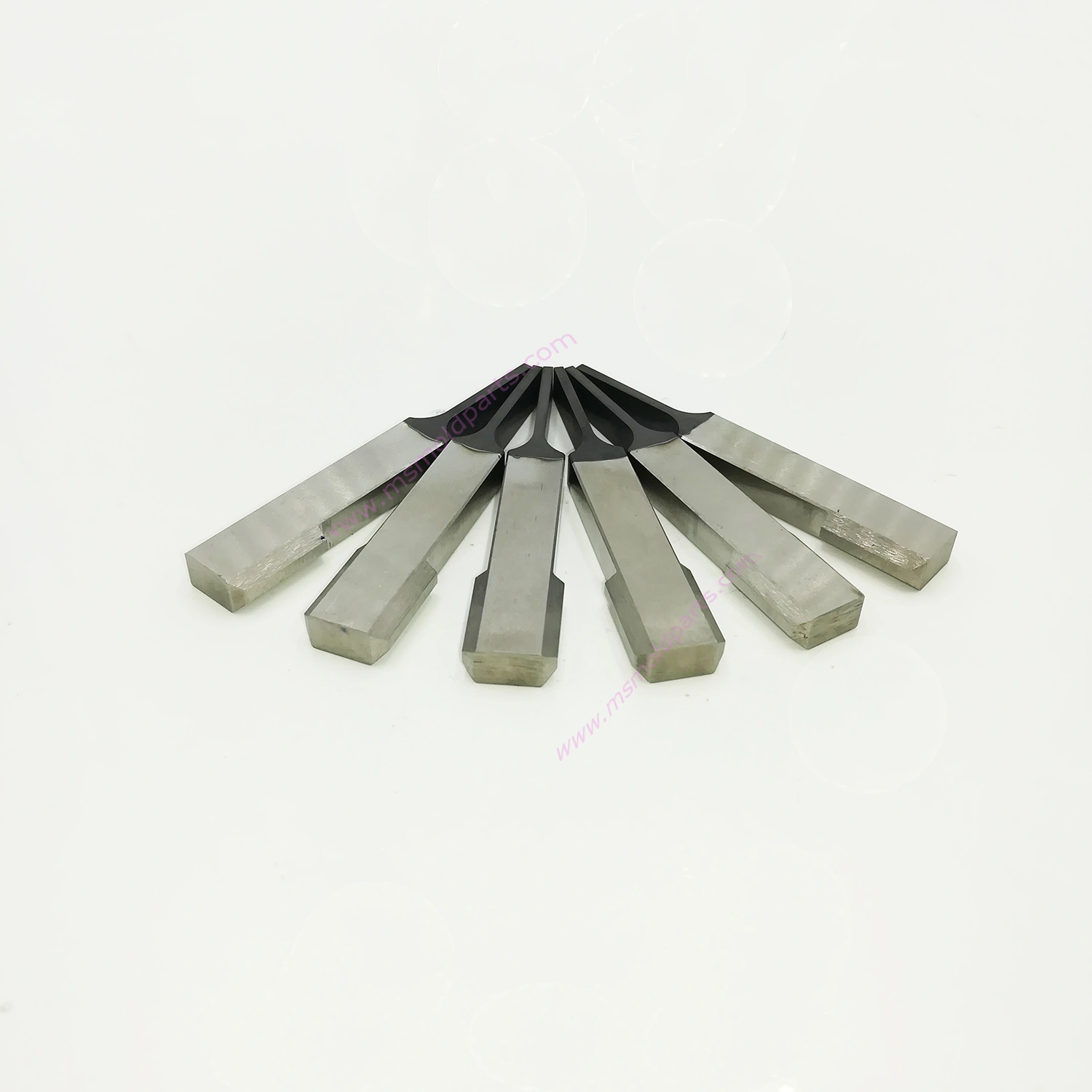

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
