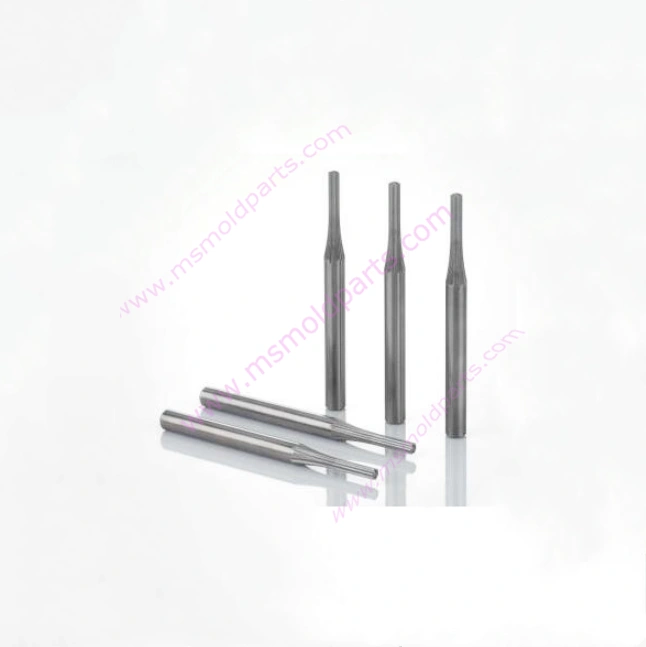

mould punch pins

Press mold punch 1.2210 DIN punch stamping mould punch pins

ms mold parts
Discover precision press mold punch tools with 1.2210 DIN punch standards and durable stamping mould punch pins. Ideal for high-accuracy industrial stamping systems. Request CAD files today.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Press Mold Stamping Systems integrate high-performance DIN 1.2210 punches and precision mould punch pins to deliver exceptional reliability in industrial stamping operations. Engineered to meet rigorous German DIN standards, these systems provide robust solutions for high-volume production environments where precision, durability, and consistency are paramount. The combination of standardized components and optimized designs ensures seamless operation across various stamping applications.

    Key Features

  • DIN 1.2210 Material Excellence

    • Cold work steel compliant with DIN 1.2210 standards

    • Uniform hardness distribution (HRC 58-62)

    • Excellent wear resistance and toughness balance

  • System Integration Design

    • Pre-engineered compatibility between punches and mold bases

    • Optimized clearances for specific material requirements

    • Standardized dimensions for easy maintenance

  • Precision Manufacturing

    • CNC-ground surfaces achieving Ra 0.4μm finish

    • Tight tolerance control within ±0.005mm

    • Perfect geometric accuracy for consistent performance

  • Technical Specifications

  • Punch Material: DIN 1.2210 Cold Work Steel

  • Hardness: HRC 58-62

  • Surface Finish: Ra 0.4μm maximum

  • Standard Sizes: 3.0-25.0mm diameters

  • Length Options: 40-150mm

  • Temperature Resistance: Up to 300°C

  • Compliance: DIN 8580, ISO 9001

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
