schneidbuchsen , drill guide bushing , metric bushings | Donguan MS Mold Parts Co.,Ltd

DIN172 A BUSHING Schneidbuchsen Type EK mit Bund ISO 8977B Die buttons type EKD, with collar DIN179 DRILL BUSHING

ms mold parts
High-precision DIN172 A bushing and Schneidbuchsen Type EK mit Bund for industrial tooling. Compliant with ISO 8977B die buttons (Type EKD with collar) and DIN179 drill bushing standards. Ideal for precision drilling, cutting, and molding applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

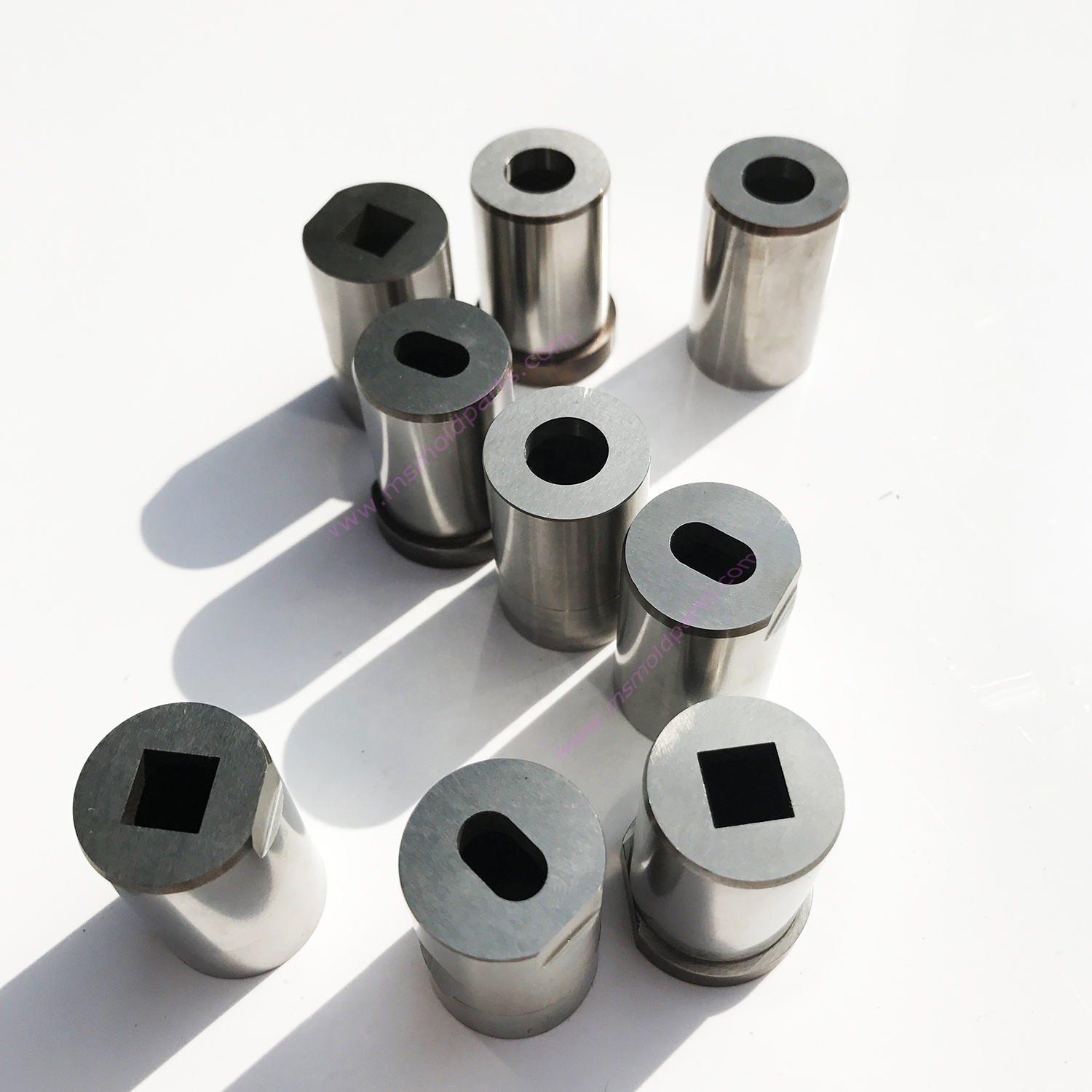

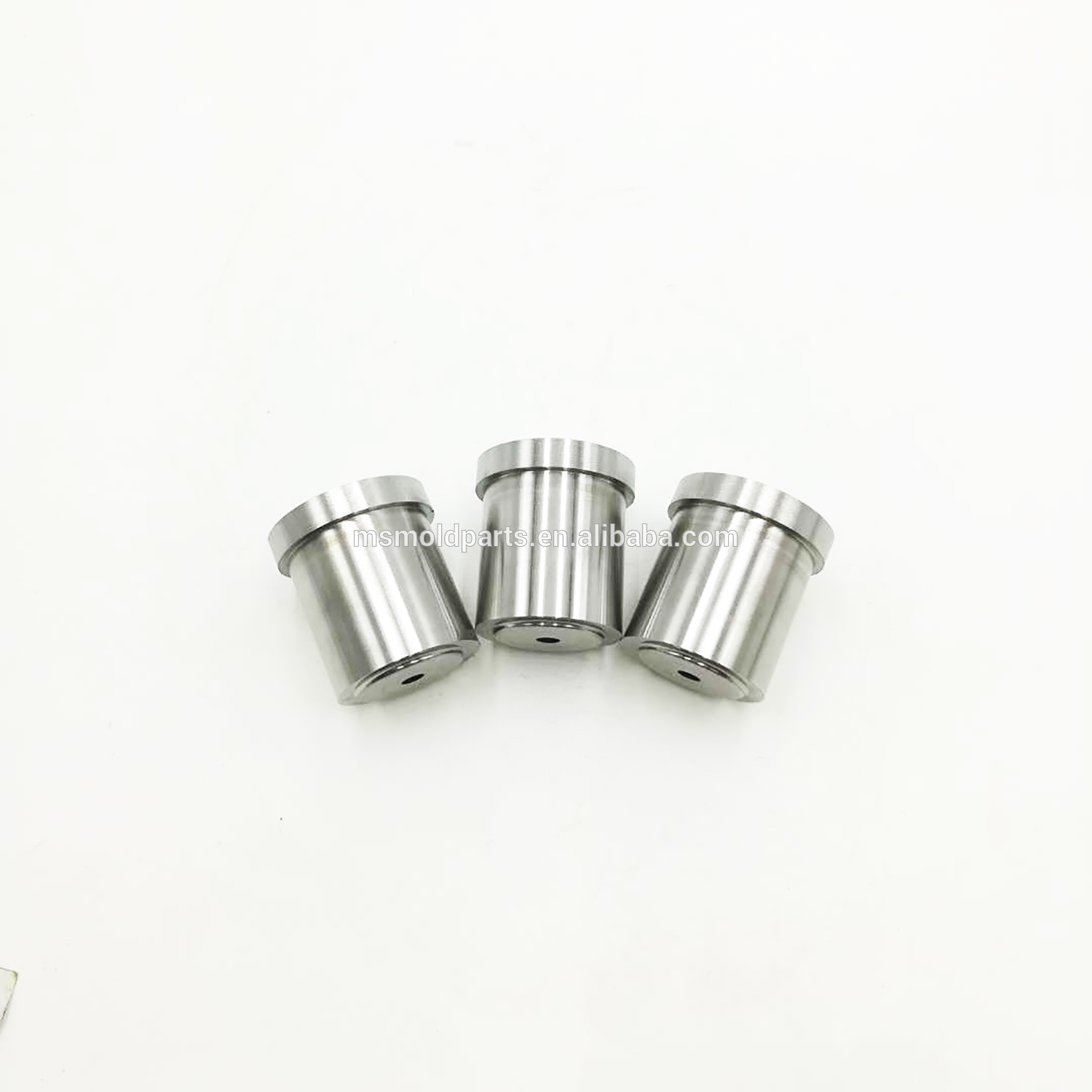

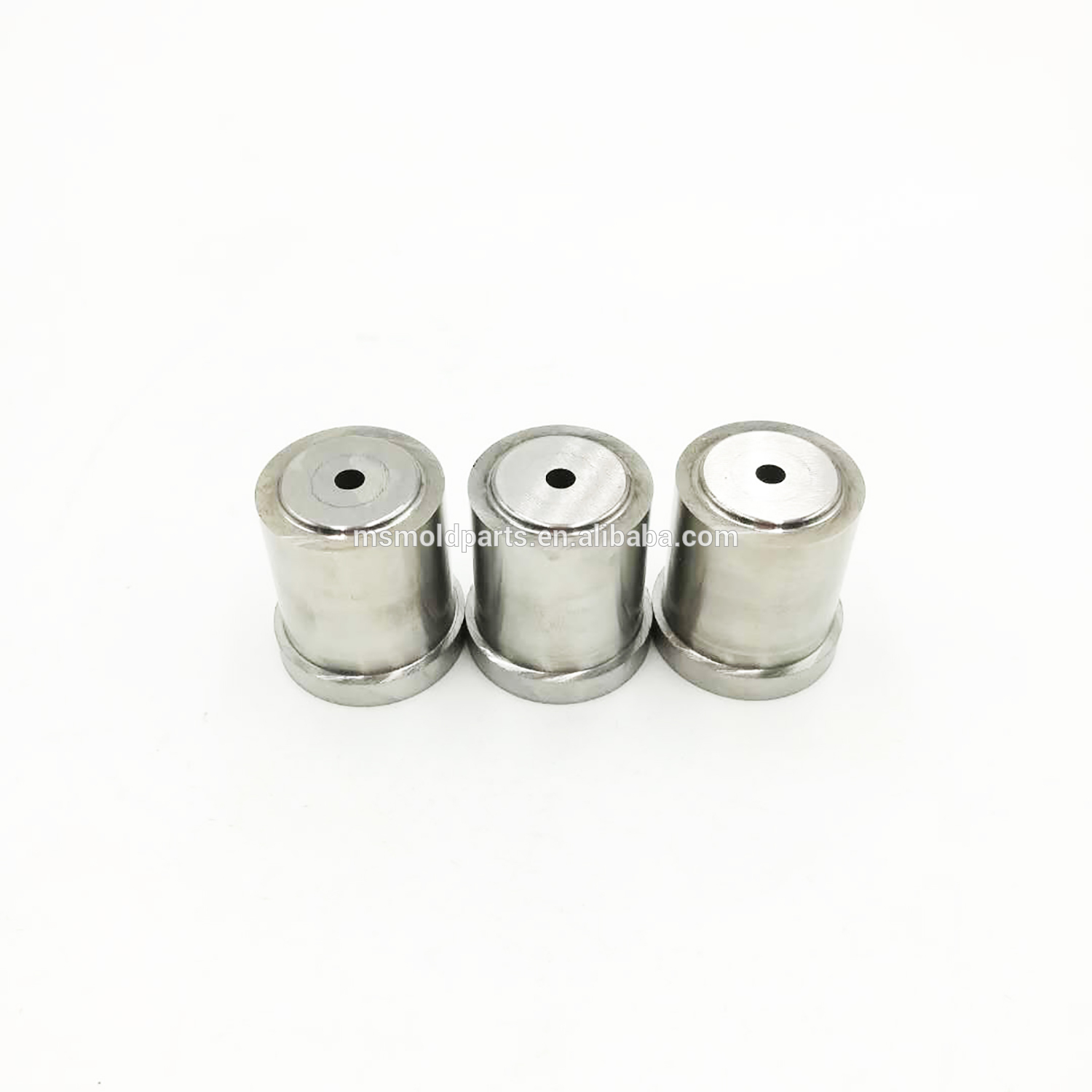

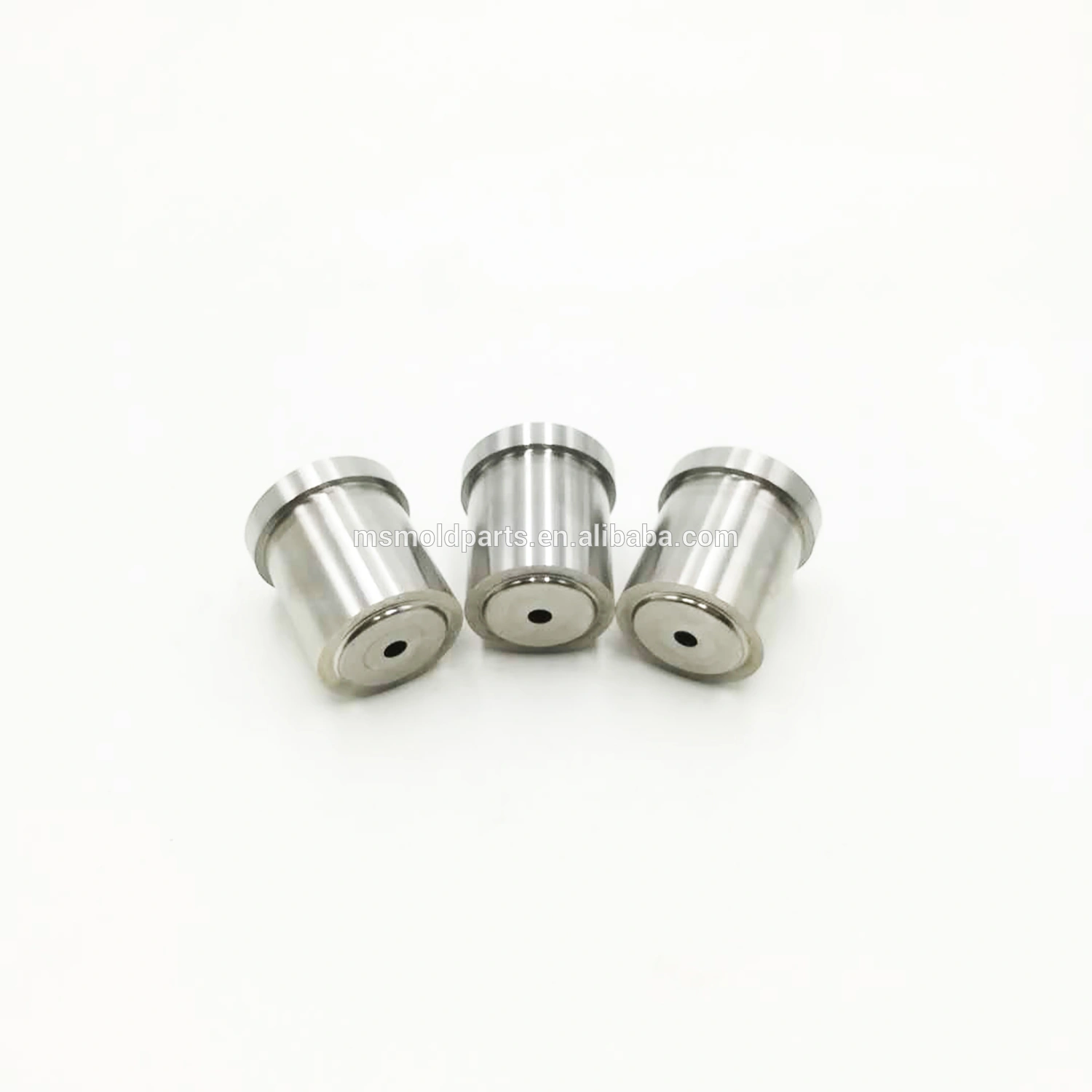

Our range of precision Schneidbuchsen (cutting bushes) and drill guide bushing products meets rigorous German and international standards, including DIN172 A, ISO 8977B, and DIN179. These metric bushings are engineered for accuracy, durability, and seamless integration into industrial tooling systems. The Type EK mit Bund (with collar) and EKD die buttons provide secure positioning and reliable performance in drilling, cutting, and molding operations. Ideal for high-precision applications across automotive, aerospace, and manufacturing industries.

Key Features:

  • Standard Compliance: Complies with DIN172 A, ISO 8977B (EKD die buttons with collar), and DIN179 drill guide bushing specifications.
  • Precision Design: Schneidbuchsen and metric bushings manufactured to tight tolerances (±0.01mm) for accurate alignment and operation.
  • Durable Materials: Made from high-grade tool steel or carbide, ensuring wear resistance and longevity.
  • Collar Design: The Type EK mit Bund (with collar) and EKD die buttons offer secure installation and prevent over-insertion.
  • Versatility: Suitable for drilling guides, cutting dies, injection molds, and stamping tools.

Applications:

  • Precision drilling and guiding systems
  • Metal cutting and blanking dies
  • Injection molding and die-casting molds
  • Automotive and aerospace component manufacturing
  • Industrial tooling and machinery maintenance
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
