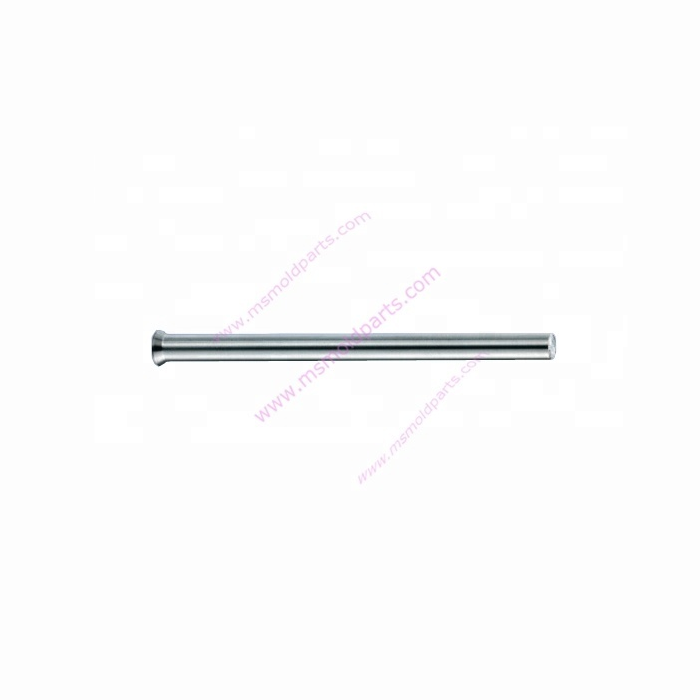

Kegelkopf-Stempel DIN 9861

Tungsten Carbide punch with countersunk head Similar to DIN 9861 standard part 1, type D and ISO 6752

ms mold parts
Ein Präzisions-Stanzwerkzeug mit kegelförmigem Kopf (konischem Kopf), typischerweise nach DIN 9861 (Typ D) oder ISO 6752 genormt. Wird in Stanz- und Schneidanwendungen eingesetzt, um präzise Lochungen in Metall oder Materialverbunden zu erzeugen, und bietet durch seine Form optimierte Führung und reduzierte Reibung.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Product Overview
    Our Tapered Head Punch represents the pinnacle of precision in punching tool technology. Manufactured in strict compliance with DIN 9861 standards and compatible with ISO 6752 specifications, this cone head punch delivers exceptional performance in demanding punching and cutting applications. The tapered head design ensures optimal guidance and minimized friction for extended tool life.

    Key Features

  • Precision Manufacturing

    • Tapered head design for excellent guidance properties

    • Dimensional accuracy within ±0.005 mm

    • Ground surface finish (Ra ≤ 0.4 μm) for reduced friction

  • Standard Compliance

    • Fully compliant with DIN 9861 (Part 1, Type D)

    • Compatible with ISO 6752 standard

    • Interchangeable with standard punches

  • Premium Material Quality

    • High-performance high-speed steel (HSS)

    • Heat treated to hardness grade HRC 60-64

    • Excellent wear resistance

  • Technical Specifications

  • Material: High-Speed Steel (HSS M2/M35)

  • Hardness: HRC 60-64

  • Surface Finish: Ra ≤ 0.4 μm

  • Standard Diameters: 3.0-25.0 mm

  • Length Range: 40-120 mm

  • Standards: DIN 9861 Type D, ISO 6752

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
