High Precision Die Mold Accessories Guide Bush

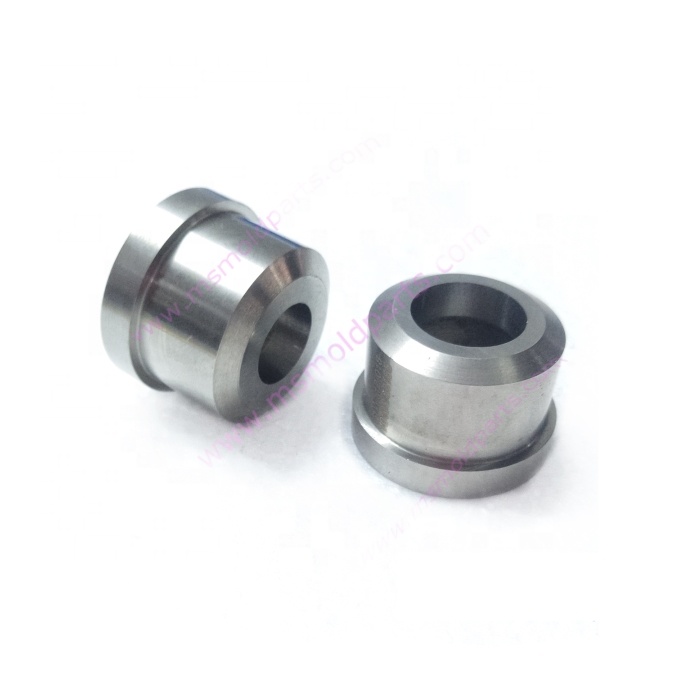

Tungsten Carbide Die bush with cylindrical head High Precision Die Mold Accessories Guide Bush

ms mold parts
A High Precision Die Mold Accessories Guide Bush is a critical component designed to ensure exact alignment and smooth movement in industrial molds and dies. It reduces wear, maintains precision, and extends the lifespan of high-performance tooling systems.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

Product Overview
The High Precision Die Mold Accessories Guide Bush is an essential component engineered to deliver exceptional alignment accuracy and long-lasting performance in demanding industrial molds and dies. Crafted from premium materials such as Tungsten Carbide Die Bush with Cylindrical Head, this guide bush guarantees smooth operation, minimal wear, and extended service life for precision tooling systems across various applications.

Key Features & Benefits

  • Exceptional Alignment Accuracy
    Designed to maintain precise alignment in high-speed and high-load environments, the High Precision Die Mold Accessories Guide Bush ensures consistent performance and reduces the risk of misalignment in progressive dies and molds.

  • Superior Durability
    Made from robust materials like Tungsten Carbide Die Bush with Cylindrical Head, this guide bush offers exceptional wear resistance, hardness, and corrosion resistance, making it ideal for prolonged use in challenging industrial conditions.

  • Smooth Operation
    The cylindrical head design and precision-ground surface minimize friction, allowing for seamless movement and reducing the need for frequent maintenance or replacements.

  • Wide Compatibility
    This guide bush is compatible with various die and mold systems, providing versatile solutions for industries requiring high precision and reliability.

Technical Specifications

  • Material: Tungsten Carbide / High-Grade Tool Steel

  • Hardness: 85-92 HRA (Tungsten Carbide) | 58-62 HRC (Tool Steel)

  • Surface Finish: Precision Ground, Ra ≤ 0.4 μm

  • Head Design: Cylindrical Head for Secure Mounting

  • Standards: Customizable to DIN, ISO, or JIS Specifications

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
