Industrial Shouldered Bushing Kits

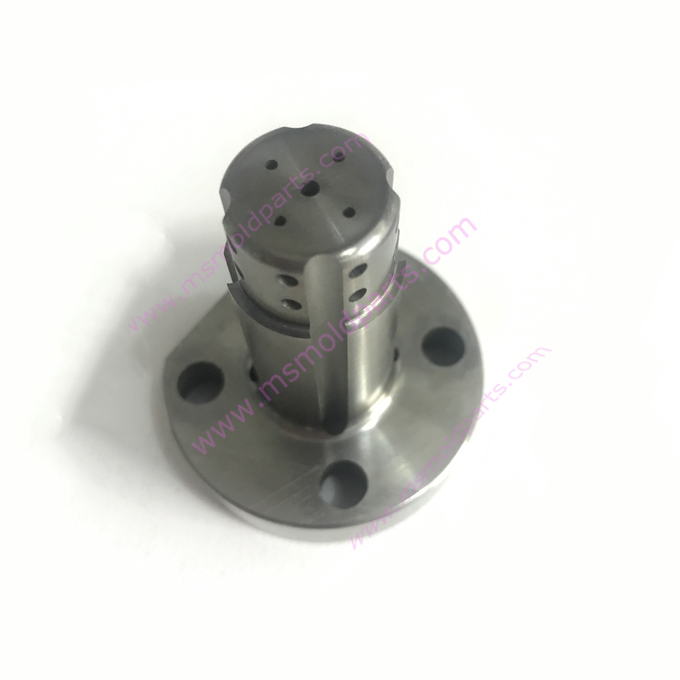

Mould precision components Tungsten carbide drilling bush die cutting punch Customized shouldered guide bush

ms mold parts
High-accuracy components (e.g., guide bushes, punches, ejectors) manufactured to tight tolerances (±0.002mm) and superior surface finishes (Ra ≤0.4μm). Made from materials like tool steel or carbide, they ensure exact alignment, durability, and reliability in injection molds, stamping dies, and industrial machinery
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Precision Mould Parts represent the highest standard of accuracy and reliability in mold manufacturing and maintenance. This comprehensive product line integrates three critical technologies: ultra-precision mould components for exacting tolerances, tungsten carbide drilling bushes for exceptional wear resistance, and industrial shouldered bushing kits for perfect alignment systems. Engineered to work seamlessly together, these components deliver unmatched performance in the most demanding production environments.

    Key Features

  • Ultra-Precision Manufacturing

    • Micro-machined surfaces achieving Ra 0.1μm finish

    • Dimensional tolerances maintained within ±0.002mm

    • Perfect geometric accuracy across all component interfaces

  • Premium Material Selection

    • Tungsten carbide drilling bushes with HRA 90-93 hardness

    • High-speed steel die cutting punches (HRC 62-65)

    • Bearing steel (SUJ2) shouldered bushings (HRC 58-62)

  • Enhanced Performance Design

    • Optimized clearance angles for chip-free operation

    • Specialized heat treatment for stress relief

    • Custom configurations for specific application requirements

  • Technical Specifications

  • Materials:
    ∙ Tungsten Carbide (YG/YF series)
    ∙ High-Speed Steel (HSS M2/M35)
    ∙ Bearing Steel (SUJ2 equivalent)

  • Hardness Range: HRA 90-93 (Carbide), HRC 62-65 (HSS), HRC 58-62 (Steel)

  • Surface Finish: Ra 0.1-0.4μm

  • Standard Sizes: 1.0-100mm diameters

  • Temperature Resistance: -50°C to 800°C (material dependent)

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
