oem precision ejector punch supply

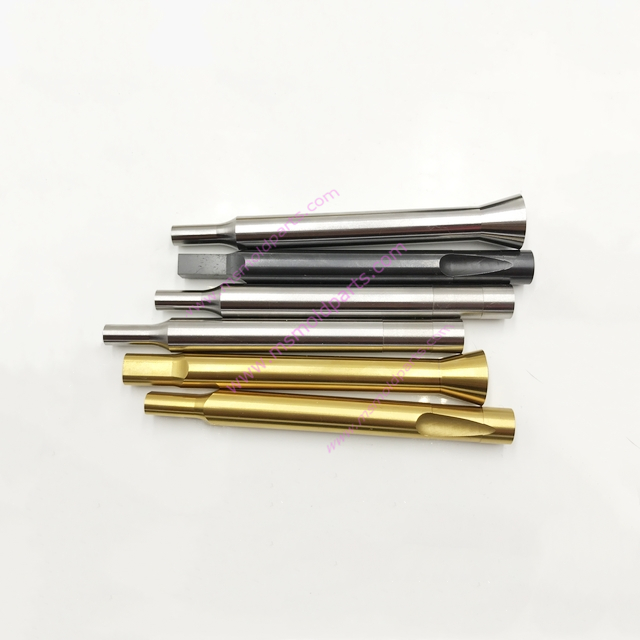

Heavy duty Ball lock Ejector punch factory produce Precision ejector punch with rectangular shape with oblong punches

ms mold parts
A robust industrial tool with a ball lock mechanism for secure mounting, factory-produced for precision ejection in molds or stamps. Designed with rectangular or oblong punch shapes to create specialized holes or features, it ensures high durability (HRC 58+), exact alignment, and reliable performance in heavy-load applications like automotive or aerospace manufacturing.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Heavy Duty Ejector Punch series represents the ultimate in durability and precision for demanding industrial applications. As a trusted OEM supplier, we provide comprehensive precision ejector punch solutions, including specialized oblong punches designed for unique manufacturing requirements. Engineered to withstand extreme operating conditions, these components deliver exceptional performance and reliability in high-stress stamping and molding environments.

    Key Features

  • Heavy-Duty Construction

    • Reinforced design for high-impact applications

    • Enhanced structural integrity under extreme pressures

    • Optimized geometry for maximum strength and durability

  • OEM Precision Manufacturing

    • Strict quality control for original equipment specifications

    • Consistent dimensional accuracy across production batches

    • Custom engineering for specific OEM requirements

  • Specialized Oblong Punch Design

    • Precision oblong geometries for unique hole patterns

    • Optimized edge configurations for clean material separation

    • Custom aspect ratios and corner radii available

  • Technical Specifications

  • Materials: Premium Tool Steel, HSS, Special Alloys

  • Hardness: HRC 58-63

  • Surface Finish: Ra 0.4μm maximum

  • Standard Diameters: 5-50mm

  • Oblong Sizes: 3x6mm to 25x50mm

  • Length Options: 40-200mm

  • Temperature Resistance: Up to 450°C

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
