punch shape

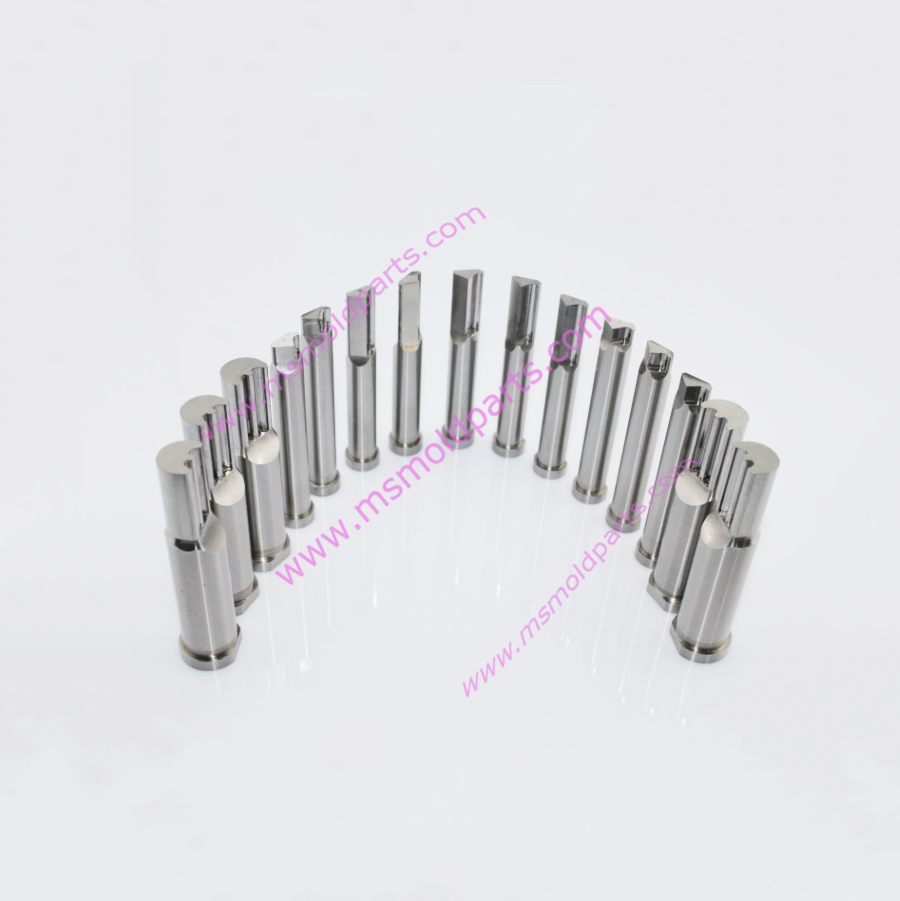

Precision HSS/SUS/tungsten steel punch pin/punch rod for mould Factory produce Precision punch with rectangular shape

ms mold parts
Factory-manufactured punching tools made of HSS, stainless steel (SUS), or tungsten steel, designed for molds and stamping systems. Available in rectangular shapes and custom profiles, they feature high hardness (HRC 60+), tight tolerances (±0.003mm), and wear resistance for precision piercing, blanking, or forming operations.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Precision HSS Punch Pin series represents the ultimate in cutting tool technology for modern manufacturing. This comprehensive product line includes high-performance punch rods and custom-shaped punch solutions, all manufactured from premium high-speed steel to deliver exceptional precision and durability. Engineered to meet the most demanding industrial requirements, these components provide reliable performance in various molding and stamping applications while maintaining superior wear resistance and dimensional stability.

    Key Features

  • Premium Material Excellence

    • High-speed steel (HSS M2/M35) construction

    • Superior red hardness and wear resistance

    • Excellent impact toughness for demanding applications

  • Precision Manufacturing

    • CNC grinding technology ensuring ±0.003mm tolerances

    • Micro-ground surfaces achieving Ra 0.2μm finish

    • Perfect geometric accuracy for consistent performance

  • Custom Shape Capabilities

    • Specialized rectangular, square, and irregular shapes

    • Complex profile manufacturing with tight tolerances

    • Custom design support for unique application requirements

  • Technical Specifications

  • Material: High-Speed Steel (HSS M2/M35)

  • Hardness: HRC 62-65

  • Surface Finish: Ra 0.2μm maximum

  • Diameter Range: 1.0-25.0mm

  • Length Options: 40-200mm

  • Shape Options: Round, Rectangular, Square, Custom profiles

  • Straightness: 0.005mm/100mm maximum

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
