High-quality quill punches designed for durability and precision, fully compatible with MISUMI mold components. Ideal for reducing injection molding die cost while ensuring long-lasting performance in tool and die applications.

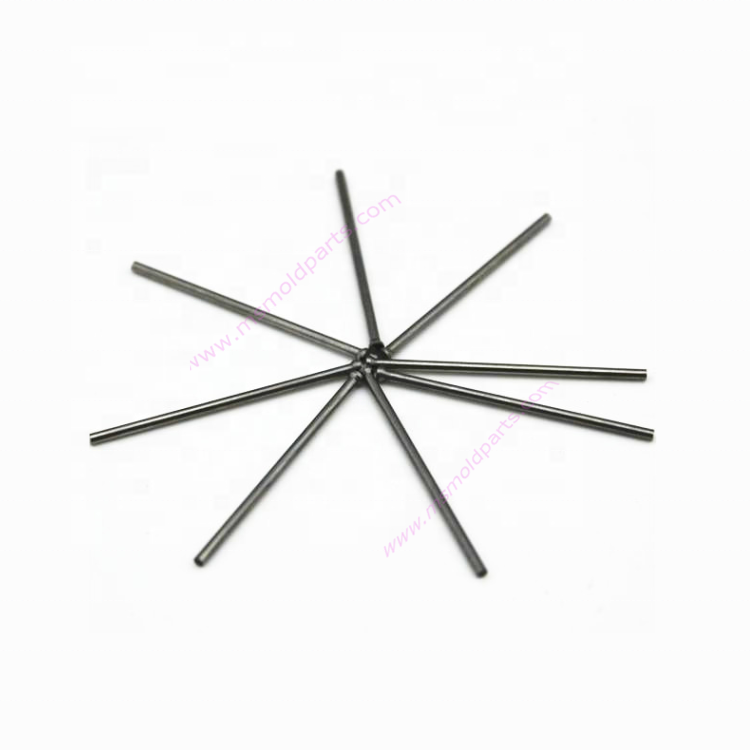

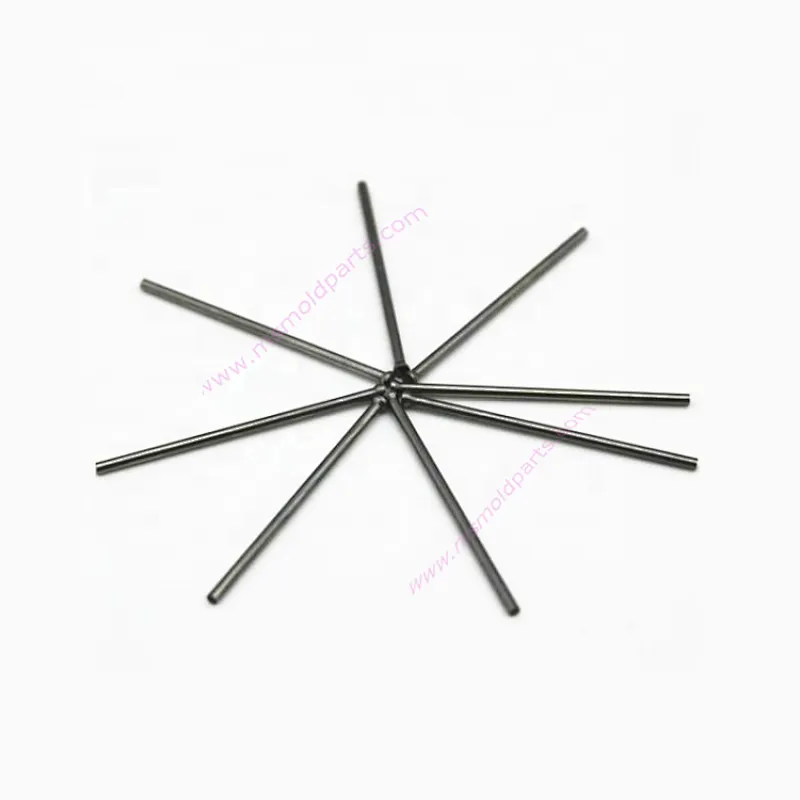

Quill type Shoulder Punches MISUMI Standard mold parts

MS-Punch-009

Quill Type Shoulder Punches designed to meet MISUMI Standard mold parts requirements, offering high precision, durability, and reliable performance for injection mold and die applications.

Delivery

FOB

minimum order

1 piece

Supply Ability

10000.0piece / Month

Country of Origin

ShenZhen GuangZhou

Quantity:

USD0.10 - USD3.00 / piece

Contact Now

add to cart

In modern injection moldingandtool & die manufacturing, high-quality punches play a crucial role in ensuring precision, durability, and cost-effectiveness. Our quill punches are designed to meet the rigorous demands of global mold makers, providing compatibility with MISUMI mold components and helping to effectively lower injection molding die cost.

High Precision Quill Punches
Ourquill punches are manufactured with advanced machining and heat treatment technology, ensuring excellent dimensional accuracy and long service life for demanding molding and stamping applications.
Compatible with MISUMI Mold Components
Fully compatible with MISUMI mold components, these punches allow seamless integration into existing mold and die systems, making replacement and maintenance easier.
Reduced Injection Molding Die Cost
By offering superior wear resistance and stable performance, our punches effectively help reduce injection molding die cost, providing cost efficiency for both high-volume and custom projects.
Durable Material & Surface Treatment
Made from high-quality alloy steels with optional coatings, these punches provide exceptional hardness, corrosion resistance, and reliable performance even under continuous heavy-duty production.
Wide Application
Suitable for injection molds, stamping dies, and precision tooling industries, quill punches are an ideal solution for manufacturers seeking reliability, accuracy, and efficiency.

Product Description

Specification

Material	Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard	Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size	Depend on your drawings or products standard
Place of origin	Dongguan, Guangdong, China
Heat treatment	Available
Surface Work	TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance	+ - 0.002mm
Polishness	Close to Ra0.2
Hardness	Depends on material(HRC60~94)
Delivery time	3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products	Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.

Our Mainly Parts

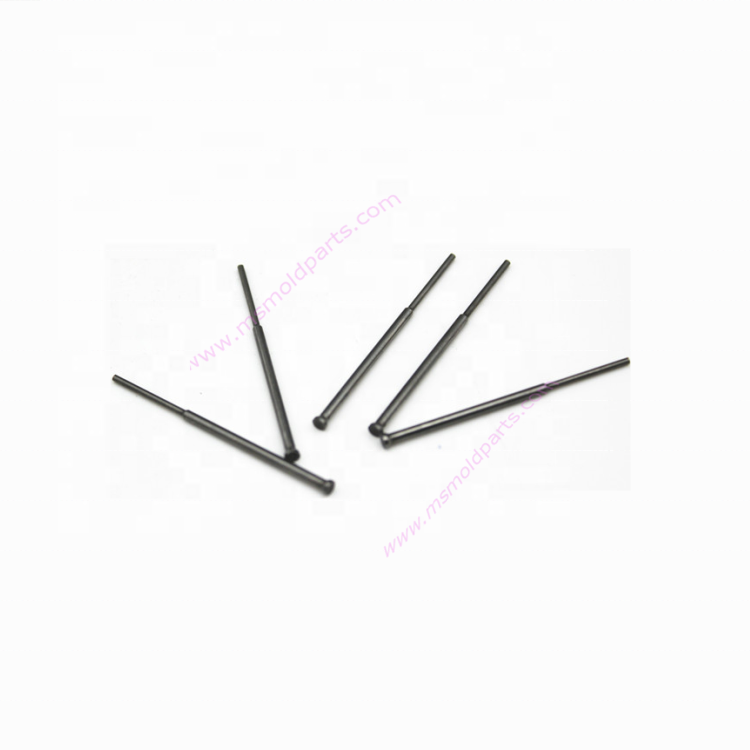

Quill type Shoulder Punches

Exhibition

Factory Equipment

OUR More Parts

Packing & Delivery

Certifications

Quill punches are widely used in injection molding, press dies, and precision tooling industries, playing a vital role in achieving accuracy and stability in production. Their applications include:

Injection Molding
Used in mold structures to ensure precise ejection and shaping of plastic components, helping maintain product consistency.
Press & Stamping Dies
Applied in tool and die punch systems for metal stamping, cutting, and forming processes, ensuring high durability under continuous cycles.
MISUMI-Compatible Mold Components
As replacement parts for MISUMI mold components, quill punches allow easy integration and cost-effective mold maintenance.
Precision Engineering
Essential for industries requiring tight tolerances, such as automotive, electronics, and medical device manufacturing.
Cost Efficiency
By reducing tool wear and improving production stability, quill punches contribute to lowering injection molding die cost while increasing operational efficiency.
