Precision Lock Pin Components

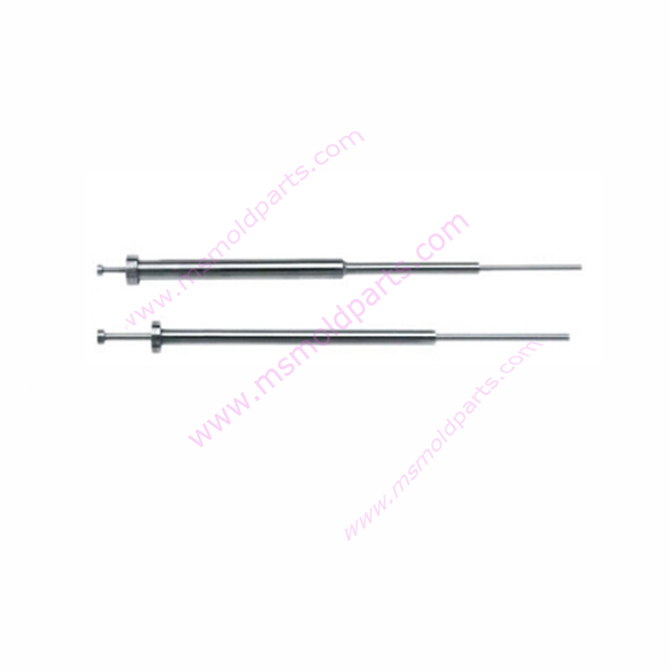

Reasonable Price Injection Molding Misumi Metal Punch Pin Lock Pin Ejector Pin

ms mold parts
A hardened cylindrical steel pin used in injection molds to push finished plastic parts out of cavities after cooling. Designed with precise dimensions, smooth surface finish, and wear resistance (typically HRC 50-60) to ensure reliable ejection without damaging the molded product.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Reasonable Price Injection Molding Metal Punch Pin series offers exceptional value without compromising quality. This comprehensive range includes precision metal punch pins, reliable lock pins, and durable ejector pins specifically designed for injection molding applications. We provide cost-effective solutions that maintain high performance standards, making quality tooling components accessible to businesses of all sizes.

    Key Features

  • Cost-Effective Quality

    • Competitive pricing without sacrificing precision

    • Bulk order discounts for increased savings

    • Consistent quality across all price points

  • Material Reliability

    • Quality tool steel construction

    • Proper heat treatment for durability

    • Corrosion resistance for extended lifespan

  • Precision Engineering

    • Standard tolerances maintained within ±0.01mm

    • Smooth surface finish for optimal performance

    • Interchangeable with major brand specifications

  • Technical Specifications

  • Materials: Quality Tool Steel

  • Hardness: HRC 50-55

  • Diameter Range: 1.0-12.0mm

  • Length Options: 20-200mm

  • Surface Finish: Ra 0.8μm maximum

  • Straightness: 0.02mm/100mm maximum

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
