High-quality pillar guide and shoulder guide designed for precision alignment in molds. Compatible with Misumi guide pillar standards, ensuring durability, stability, and cost-effective solutions for injection and press mold applications.

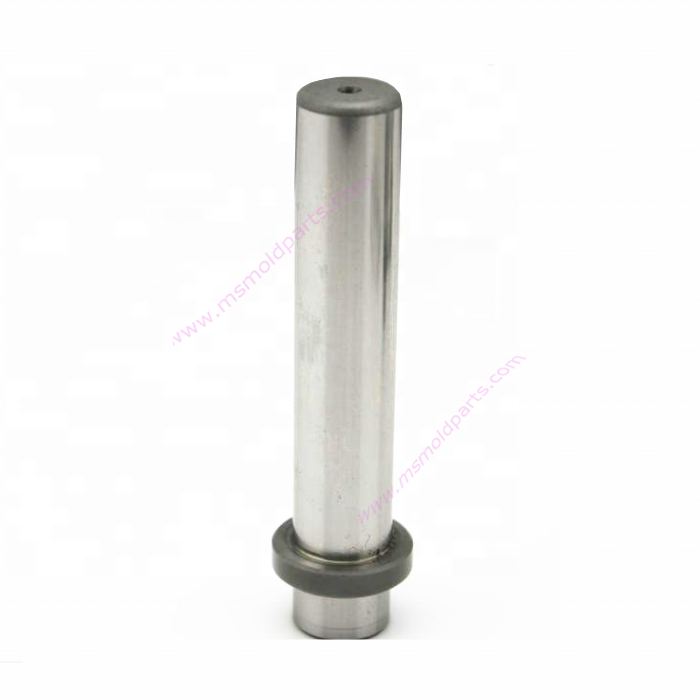

shoulder guide pillar with collar, mold guide pillar wholesale price

ms mold parts
The shoulder guide pillar with collar is a high-precision mold component designed for accurate alignment and smooth guidance in injection and press molds. With durable material construction and a wholesale price, it ensures stability, long service life, and cost-effectiveness for mold manufacturers.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart
Ourshoulder guide pillar with collar is a high-precision pillar guide designed for injection molds, stamping dies, and other tooling applications. Manufactured with premium steel and strict tolerance control, it ensures smooth movement, accurate alignment, and extended mold life.
  • High Precision & Stability: This shoulder guide provides excellent alignment and positioning, minimizing wear during repeated mold operations.
  • Durable Construction: Made from hardened alloy steel, it guarantees long-lasting performance under heavy-duty cycles.
  • Versatile Compatibility: Available in various sizes and specifications, it is interchangeable with standard misumi guide pillar designs for global mold systems.
  • Cost-Effective Solution: Offered at wholesale price, making it a reliable and economical choice for mold manufacturers.
  • Custom Options: OEM/ODM services are available to meet specific mold requirements.
With superior quality and precise engineering, our shoulder guide pillar with collar is the ideal choice for high-performance molds in automotive, electronics, and plastic industries.
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
