precision guide buttons for punches

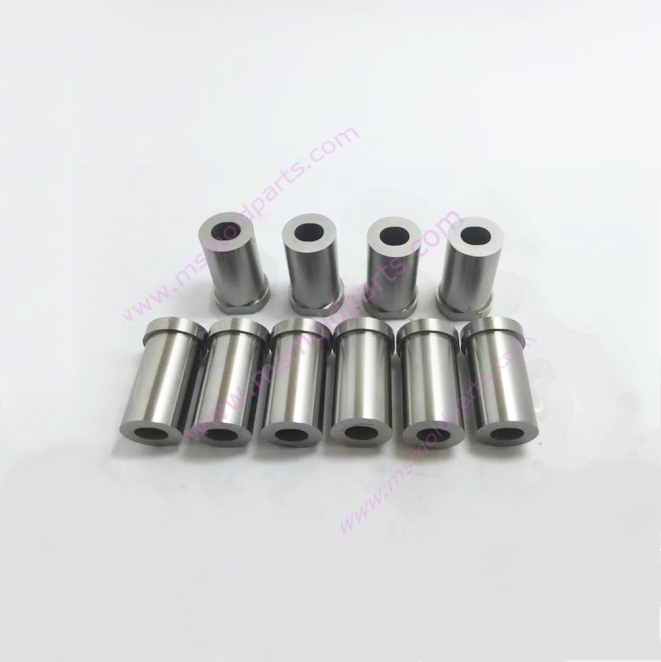

Shoulder Guiding Button for Punch DIN 172

ms mold parts
A precision guide component with an integrated shoulder, designed for use with DIN 172 standard punches. Provides accurate axial positioning and stable alignment in stamping systems, made from hardened steel (HRC 58-62) to ensure durability and prevent misalignment during high-pressure operations.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Shoulder Guide Button Components represent a sophisticated integration of precision guidance technology with standardized punching solutions. This comprehensive product line combines specialized shoulder guide buttons with DIN 172 standard punches and precision guide buttons, delivering exceptional alignment accuracy and operational reliability in demanding stamping applications. Engineered to meet rigorous German industrial standards, these components ensure perfect compatibility and extended service life in high-performance tooling systems.

    Key Features

  • Shoulder Guide Button Excellence

    • Integrated shoulder design for precise axial positioning

    • Enhanced stability under lateral loads and impact forces

    • Optimized geometry for perfect alignment in guide systems

  • DIN 172 Standard Compliance

    • Full conformity with DIN 172 specifications for material and dimensions

    • Certified cold work steel quality and heat treatment processes

    • Interchangeable with global standard tooling components

  • Precision Guide Button Technology

    • Micro-ground surfaces achieving Ra 0.2μm finish

    • Tight dimensional tolerances within ±0.003mm

    • Perfect concentricity for smooth guidance operation

  • Technical Specifications

  • Materials: Cold Work Steel (DIN 172), Tool Steel, Bearing Steel

  • Hardness: HRC 58-62

  • Surface Finish: Ra 0.2μm maximum

  • Standard Sizes: 10-80mm diameters

  • Shoulder Configurations: Multiple standard options

  • Temperature Resistance: -30°C to 300°C

  • Compliance: DIN 172, ISO 9001

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
