Discover high-quality stepped punches, tool and die punch, and quill punch designed for precision mold and stamping applications. Durable materials, tight tolerances, and custom solutions ensure reliable performance in every tooling project.

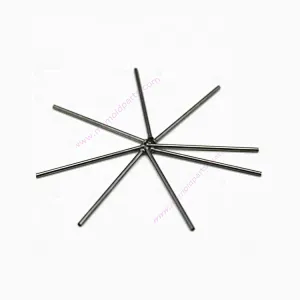

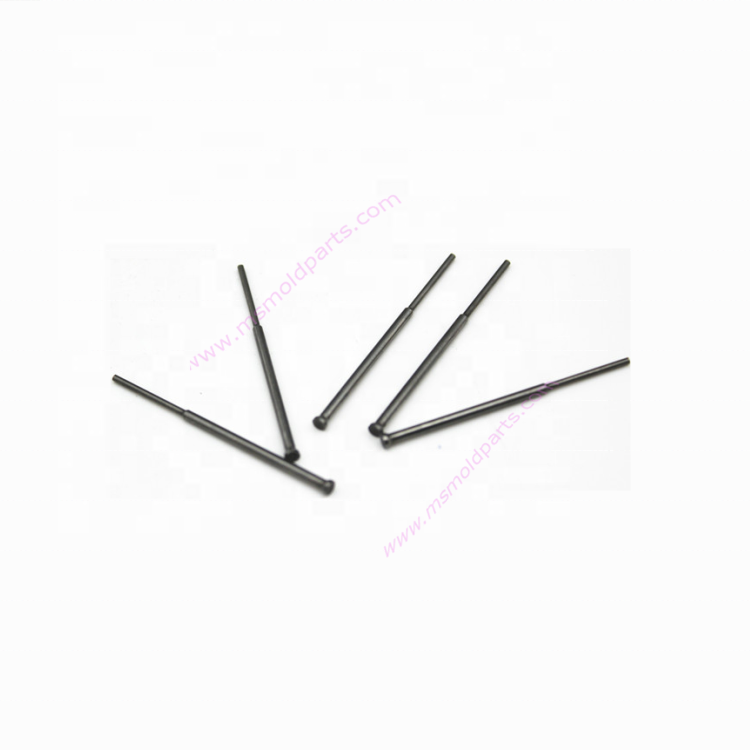

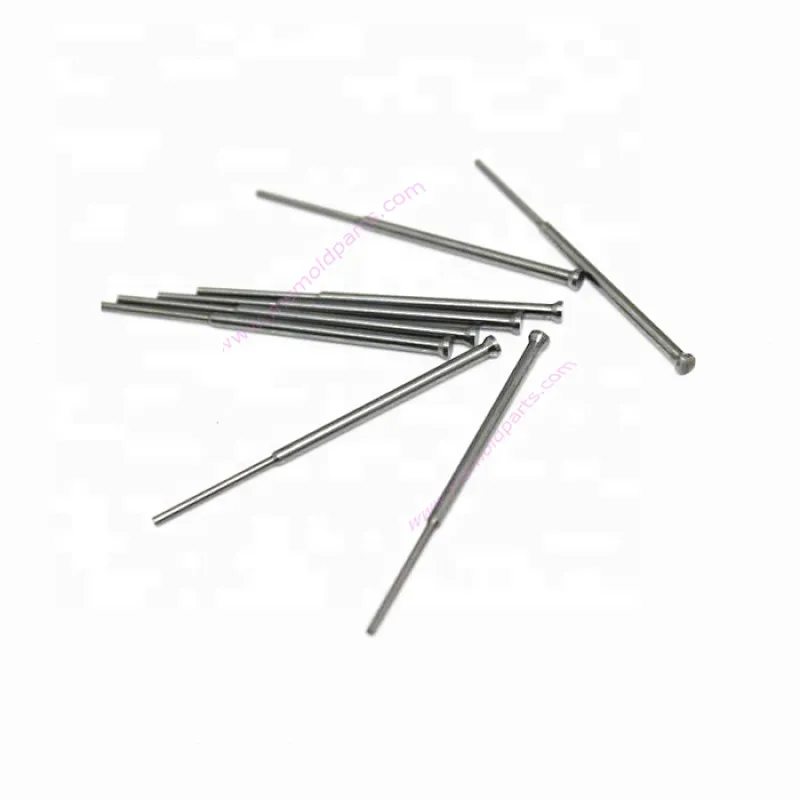

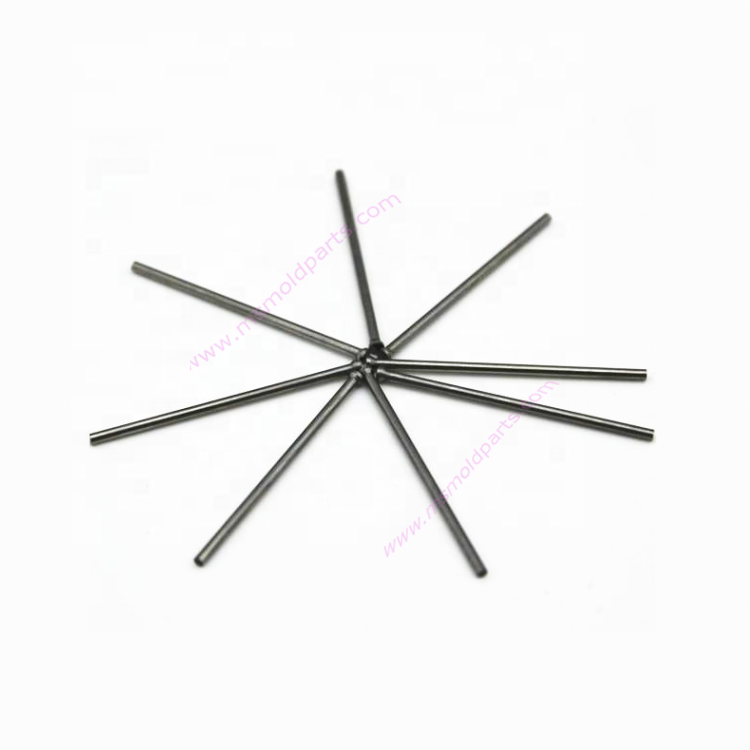

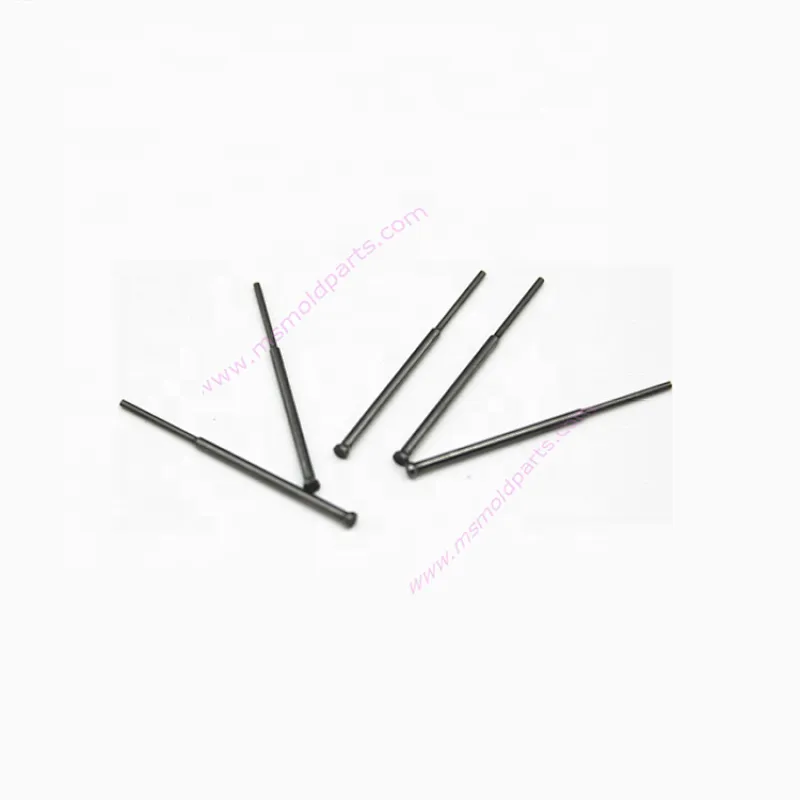

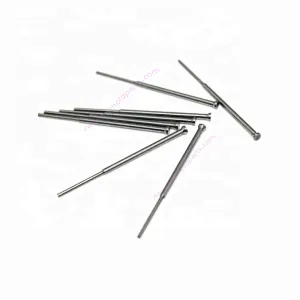

Factory price Double Stepped Shoulder Punches Quill type mould parts

MS-Punch-011
Our double stepped shoulder punches are part of stepped punches, widely used as tool and die punch solutions, and designed in quill punch style for enhanced stability and accuracy in mould operations.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD3.00 / piece
Contact Now
add to cart
OurFactory Price Double Stepped Shoulder Punches Quill Type Mould Parts are engineered for precision and durability in stamping and molding applications. These stepped punches are designed with a double-shoulder structure, ensuring stable performance and consistent accuracy during high-speed operations.

Key Features

  • Tool and Die Punch Quality: Manufactured with premium alloy tool steel, delivering excellent hardness, wear resistance, and long service life.
  • Quill Punch Design: The quill type structure enhances alignment and stability, reducing the risk of deviation during punching.
  • High Precision: Advanced machining and heat treatment guarantee dimensional accuracy and strength.
  • Versatile Applications: Ideal for use in automotive, electronics, hardware, and precision mold industries.
  • Custom Options: Available in different sizes, coatings, and specifications to match diverse production requirements.
  • Cost-Effective: Direct factory supply ensures competitive pricing without compromising on quality.
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
Our Mainly Parts
Shoulder Punches
