tin punch

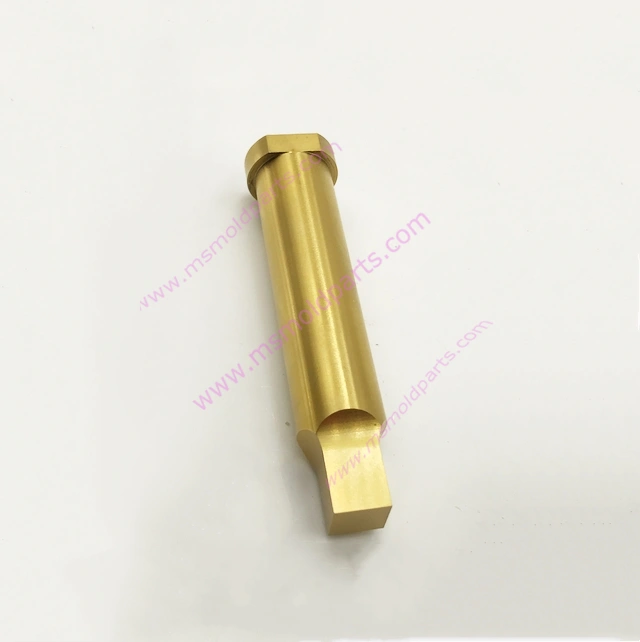

Sound performance carbide punch pin Square head punch with TiN coating

ms mold parts
A high-durability punching tool made of tungsten carbide (HRA 88-92) with a square head for anti-rotation stability and TiN coating for reduced friction and enhanced wear resistance. Ideal for high-volume stamping, it ensures extended service life, precision in hard materials, and reliable performance in demanding industrial applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Punch Pin Carbide series represents the pinnacle of durability and precision in industrial punching applications. This comprehensive product line combines the exceptional wear resistance of carbide materials with practical square head designs and advanced TiN coating technology. Engineered to withstand the most demanding production environments, these tools deliver unmatched performance in high-volume stamping and precision molding operations while maintaining consistent quality and extended service life.

    Key Features

  • Premium Carbide Performance

    • Tungsten carbide construction with cobalt binder

    • Extreme hardness reaching HRA 88-92

    • Superior wear resistance outperforming steel tools by 20-50 times

  • Square Head Design Advantages

    • Secure anti-rotation feature for stable operation

    • Enhanced torque resistance during installation and removal

    • Optimized head geometry for even stress distribution

  • Advanced TiN Coating Technology

    • Titanium Nitride coating with 3-5μm thickness

    • Significant friction reduction (40% less than uncoated tools)

    • Enhanced lubricity for improved material flow

  • Technical Specifications

  • Materials: Tungsten Carbide (YG/YF series)

  • Coating: TiN (3-5μm)

  • Hardness: HRA 88-92

  • Surface Hardness: HV 2300-2400 (coated)

  • Square Head Sizes: 6-25mm across flats

  • Standard Diameters: 2.0-20.0mm

  • Length Options: 40-150mm

  • Temperature Resistance: Up to 600°

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
