custom hexagon punch and die

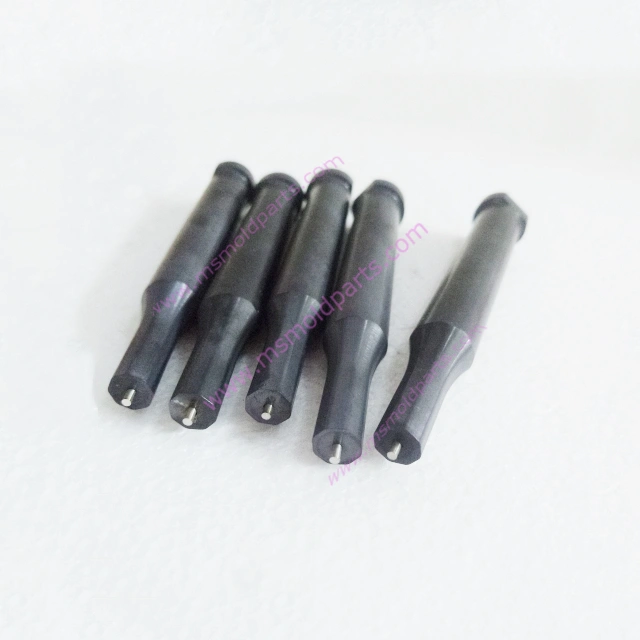

Special Customized Punch and Die Hex Punches with TiCN coating

ms mold parts
A specialized toolset designed for creating precise hexagonal holes or shapes in metal stamping. Includes a TiCN-coated punch for enhanced wear resistance and a matching die, tailored to specific dimensions and angles (e.g., 2–50mm sizes). Ideal for producing bolts, nuts, or unique hexagonal components with high accuracy and durability.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Custom Hexagon Punch and Die sets represent the pinnacle of specialized tooling excellence, designed for manufacturers requiring precise hexagonal forming capabilities. These complete tooling systems integrate TiCN coated hex punches with perfectly matched custom dies, delivering unmatched performance in producing accurate, repeatable hexagonal features across various materials and applications.

    Key Features

  • Precision Hexagon Geometry

    • Perfect 120° angle accuracy maintained within ±0.1°

    • Sharp, clean corner radii from 0.1mm to 0.5mm

    • Consistent profile replication across production runs

  • Advanced TiCN Coating Technology

    • Titanium Carbonitride coating with 3-5μm thickness

    • Surface hardness up to HV 3500 for extreme wear resistance

    • Reduced friction coefficient for improved material flow

  • Custom Engineering Flexibility

    • Tailored hex sizes from 2mm to 50mm across flats

    • Multiple clearance angles and land configurations

    • Custom shank dimensions for specific press requirements

  • Technical Specifications

  • Punch Materials: HSS M2/M35, Powder Metallurgy Steel

  • Die Materials: Tool Steel D2, Tungsten Carbide

  • Coating: TiCN (3-5μm)

  • Hardness: HRC 62-65 (punches), HRC 58-62 (dies)

  • Hex Size Range: 2-50mm across flats

  • Profile Tolerance: ±0.005mm

  • Surface Finish: Ra 0.2μm

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
