High-precision standard ball bearing guide post designed for injection and stamping molds. Fully compatible with Misumi mold components, this durable ball bearing guide post ensures smooth motion, accurate alignment, and long service life.

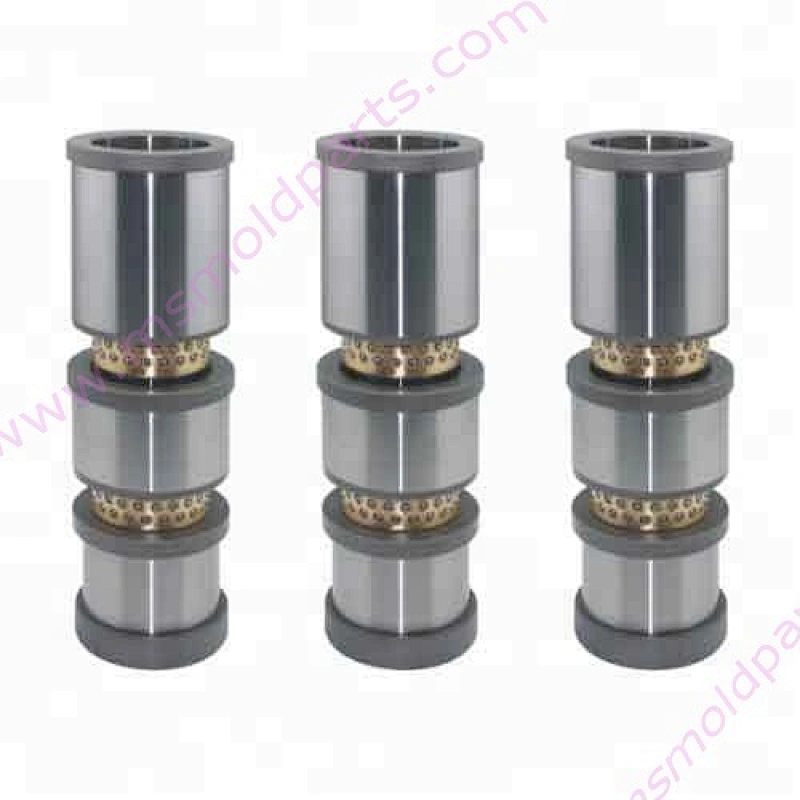

misumi standard ball bearing guide post set

MS-032
High-precision standard ball bearing guide post designed for injection and stamping molds. Fully compatible with Misumi mold components, this durable ball bearing guide post ensures smooth motion, accurate alignment, and long service life.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD3.00 / piece
Contact Now
add to cart
Product Overview
Theball bearing guide post set is a precision mold component designed to reduce friction, improve alignment, and extend mold service life. Our standard ball bearing guide post is fully compatible with Misumi mold components, making it an ideal solution for injection molds, stamping dies, and precision tooling.

Key Features

  • High Precision: Ensures accurate mold alignment and smooth sliding motion.
  • Standard Ball Bearing Design: Reduces wear, minimizes friction, and improves mold efficiency.
  • Durable Material: Made from high-quality alloy steel with excellent hardness and wear resistance.
  • Compatibility: Fully interchangeable with Misumi mold components and other standard systems.
  • Easy Installation: Modular design for quick assembly and maintenance.

Applications

  • Injection mold guide systems
  • Stamping die assemblies
  • Precision tooling and mold components
  • Automotive, electronics, and hardware industries
  • Replacement parts for Misumi guide posts and custom mold assemblies
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
Our Mainly Parts

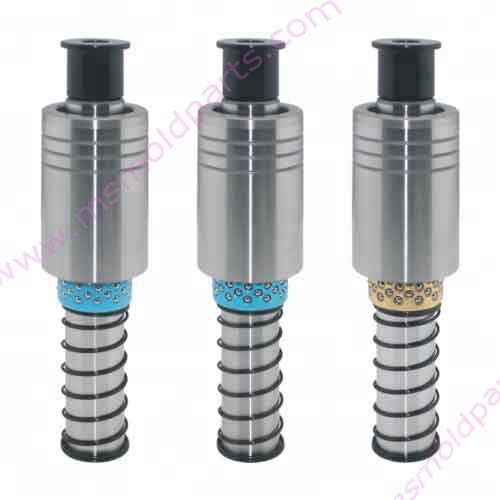

Standard Ball Bearing Guide Post Set
Exhibition
Factory Equipment

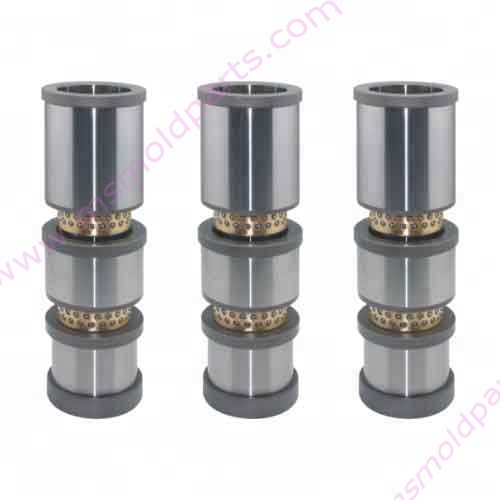

Standard Ball Bearing Guide Post Set
OUR More Parts
Packing & Delivery
Certifications
