stamping mold precision tools

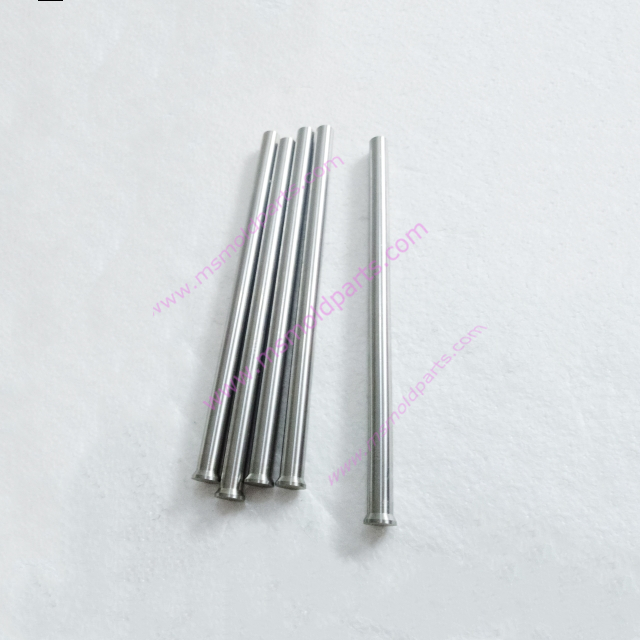

Standard punch mold parts DIN standard punch for stamping mold

ms mold parts
Standardized punches and mold components compliant with DIN standards, designed for stamping molds. Made of high-strength materials (e.g., cold work steel, HSS) with high hardness (HRC 58-64), precise dimensional tolerances (±0.005mm), and interchangeability. Ensures stable operation in stamping systems, extends mold life, and meets global standardized tooling requirements.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Standardized Mold Parts represent the foundation of precision and reliability in modern manufacturing. This comprehensive product line integrates meticulously engineered DIN standard punch components with advanced stamping mold precision tools, delivering exceptional performance and interchangeability across global production platforms. Designed to meet the most demanding industrial requirements, these components ensure consistent quality, reduced downtime, and seamless integration in various manufacturing applications.

    Key Features

  • Global Standard Compliance

    • Full adherence to DIN standards for dimensional accuracy

    • Certified material quality and manufacturing processes

    • Perfect interchangeability with international tooling systems

  • Precision Engineering Excellence

    • CNC machining ensuring tolerances within ±0.005mm

    • Micro-ground surfaces achieving Ra 0.2μm finish

    • Optimal geometric accuracy for perfect fit and function

  • Enhanced Durability Design

    • Premium materials with superior wear resistance

    • Advanced heat treatment for extended service life

    • Corrosion-resistant options for harsh environments

  • Technical Specifications

  • Materials: Cold Work Steel, HSS, Tool Steel Alloys

  • Hardness: HRC 58-64

  • Surface Finish: Ra 0.2μm maximum

  • Standard Sizes: 3-100mm diameters

  • Length Options: Customizable per requirements

  • Temperature Resistance: -30°C to 400°C

  • Compliance: DIN Standards, ISO 9001

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
