mold guide pins

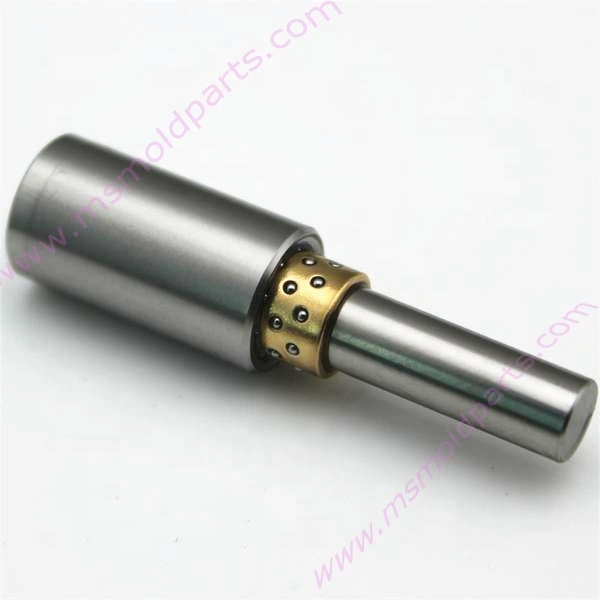

steel ball cage set guide bushing guide pins mold set high precision

ms mold parts
Precision-ground, heat-treated components (HRC 60-64) designed for high-wear mold and machinery applications. They ensure exact alignment, reduce friction with compatible ball cage sets, and provide long-term durability under heavy loads and frequent use.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Hardened Guide Bushing Guide Pins represent the ultimate in durability and precision for demanding industrial applications. Specifically engineered to work seamlessly with mold guide pins and low-friction steel ball cage sets, these components deliver exceptional wear resistance, reliable performance, and extended service life in the most challenging operating environments.

    Key Features

  • Superior Hardness & Durability

    • Through-hardened to HRC 60-64 for maximum wear resistance

    • Precision grinding ensures surface finish of Ra 0.2μm maximum

    • Maintains dimensional stability under extreme pressure conditions

  • Optimized Compatibility

    • Perfect integration with standard mold guide pins

    • Seamless operation with low-friction steel ball cage sets

    • Interchangeable with international standard components

  • Enhanced Performance

    • Special heat treatment process prevents deformation

    • Excellent corrosion resistance for long-term reliability

    • Reduced maintenance requirements through superior durability

  • Technical Specifications

  • Material: High-carbon chromium bearing steel (SUJ2 equivalent)

  • Hardness: HRC 60-64

  • Surface Finish: Ra 0.2μm maximum

  • Standard Diameters: 10-80mm

  • Length Range: 100-500mm

  • Straightness: 0.01mm/100mm maximum

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
