flanged guide bushes

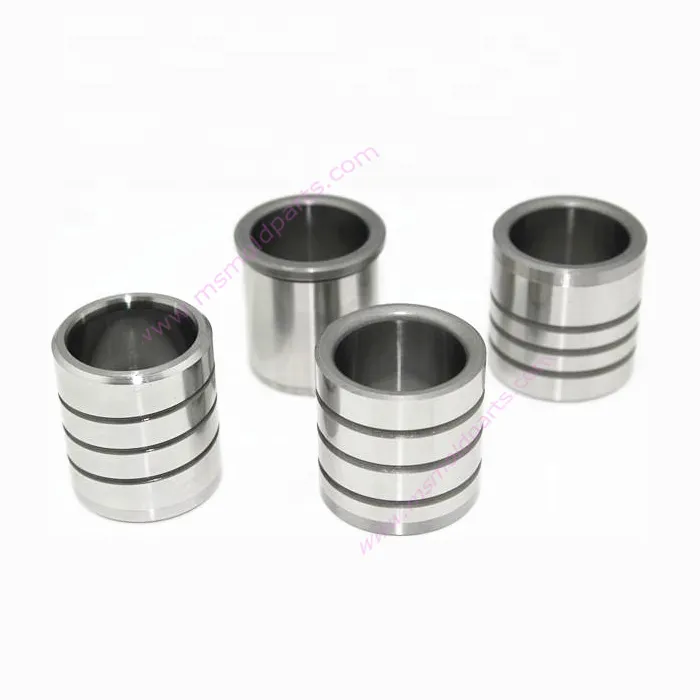

steel flanged guide bushes guide bushings with head

ms mold parts
Precision cylindrical sleeves with an integrated flange (shoulder) for secure axial positioning in molds and machinery. Made from hardened steel or wear-resistant materials, they ensure accurate alignment, prevent sinking under load, and reduce friction between moving components
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart


Our flanged guide bushes are precision-engineered components designed to provide exceptional alignment stability and durability in industrial applications. Manufactured as hardened steel flanged bushes with superior wear-resistant properties, these guide bushings deliver reliable performance in demanding mold and machinery environments.

Key Features

  1. Enhanced Flange Design

    • Integrated flange for secure axial positioning and easy installation

    • Prevents bushing sinking under heavy loads

    • Provides stable mounting in mold bases and machinery plates

  2. Premium Material Construction

    • High-carbon chromium steel (SUJ2) for hardened steel variants

    • Special surface treatments for wear-resistant models

    • Excellent hardness-toughness balance for long service life

  3. Precision Engineering

    • Precision grinding ensures tight tolerances (H7 standard)

    • Optimal surface finish (Ra ≤ 0.4μm) for smooth operation

    • Perfect concentricity between inner bore and outer diameter

Technical Specifications

  • Material: SUJ2 Bearing Steel (equivalent to AISI 52100)

  • Hardness: HRC 58-62 (hardened steel versions)

  • Surface Finish: Ra ≤ 0.4μm

  • Standard Sizes: 10-80mm inner diameter

  • Flange Dimensions: Customizable to application requirements

  • Operating Temperature: -30°C to 150°C

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
