plastic injection mold components

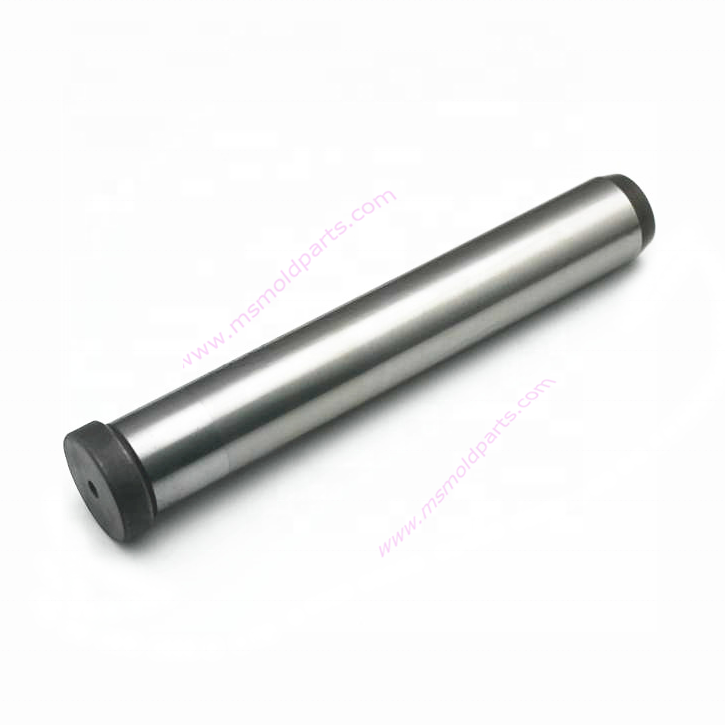

straight guide pillars plastic injection mold components guide post

ms mold parts
Cylindrical steel components (typically SUJ2 material) heat-treated to HRC 58-62 hardness, ensuring high wear resistance and dimensional stability. Designed for precise alignment in molds and machinery, they provide straight-line motion, reduce deflection under load, and extend service life in high-frequency or heavy-duty applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our Hardened Straight Guide Pillars represent the ultimate in durability and precision for demanding industrial applications. Specifically engineered as essential mold components guide posts and optimized for plastic injection mold components, these straight guide pillars deliver exceptional wear resistance, perfect alignment, and long-term reliability in the most challenging production environments.

    Key Features

  • Superior Hardness & Durability

    • Through-hardened to HRC 58-62 for maximum wear resistance

    • Precision grinding ensures surface finish of Ra 0.4μm maximum

    • Maintains dimensional stability under extreme pressure conditions

  • Precision Engineering

    • Perfect straightness maintained within 0.01mm/100mm

    • Tight diameter tolerance control within ±0.005mm

    • Optimal geometric accuracy for seamless integration

  • Enhanced Material Performance

    • High-carbon chromium bearing steel (SUJ2 equivalent)

    • Special heat treatment process prevents deformation

    • Excellent corrosion resistance for long-term reliability

  • Technical Specifications

  • Material: SUJ2 Bearing Steel (AISI 52100 equivalent)

  • Hardness: HRC 58-62

  • Surface Finish: Ra 0.4μm maximum

  • Straightness: 0.01mm/100mm maximum

  • Standard Diameters: 10-80mm

  • Length Range: 100-500mm

  • Temperature Resistance: -30°C to 150°C

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
