custom bushing , guide bush oil lubrication type , stripper guide bush | Donguan MS Mold Parts Co.,Ltd

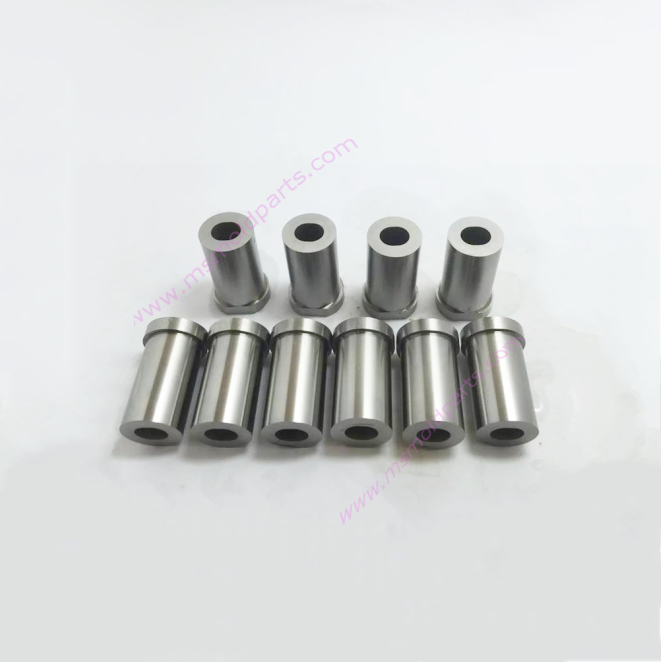

stripper guide bush oil lubrication type shoulder guide bushes

ms mold parts
High-precision stripper guide bush with oil lubrication type and shoulder guide bushes design. Ideal for mold systems requiring continuous lubrication, reducing wear and ensuring smooth operation in high-speed stamping and punching applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD8.00 / piece
Contact Now
add to cart
Our stripper guide bush combines an advanced oil lubrication type design with the stability of shoulder guide bushes, delivering unmatched performance in demanding industrial applications. Engineered as a custom bushing solution, it features integrated oil grooves for continuous lubrication, reducing friction and wear while ensuring smooth operation in high-speed stamping, punching, and molding systems. The shoulder design provides secure positioning and alignment, making it ideal for precision tooling environments.

Key Features:

  • Oil Lubrication Type: The guide bush oil lubrication type design includes built-in oil grooves for automatic and continuous lubrication, minimizing maintenance needs.
  • Shoulder Guide Bushes: The shoulder guide bushes structure ensures precise alignment and prevents lateral movement, enhancing tool stability.
  • Custom Bushing Options: Tailored dimensions, materials (e.g., tool steel, bronze), and lubrication configurations to meet specific operational requirements.
  • Wear Resistance: Hardened surfaces (optional coatings like TiN or CrN) extend service life in high-friction environments.
  • Precision Engineering: Manufactured to tight tolerances (±0.01mm) for seamless integration with stamping dies and mold bases.

Applications:

  • High-speed stamping and punching dies
  • Injection molding systems with continuous operation needs
  • Automotive component manufacturing
  • Precision machinery and industrial automation
  • Custom tooling and jig fixtures
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
