removable guide posts

SUJ2 guide post with collar, removable guide posts drill guide bushings

ms mold parts
Precision hardened steel sleeves used in jigs and fixtures to ensure accurate drill bit alignment and positioning. Compatible with SUJ2 guide posts featuring collars, these bushings support removable guide systems, reduce tool wear, and maintain drilling accuracy in repetitive operations.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart

  • Our precision drill guide bushings are engineered to provide exceptional accuracy and durability in drilling jigs and fixtures. Designed for seamless integration with SUJ2 guide posts with collar and removable guide post systems, these components ensure perfect alignment, extended service life, and effortless maintenance in demanding industrial applications.

    Key Features

  • Exceptional Wear Resistance

    • Manufactured from high-carbon chromium bearing steel (SUJ2 equivalent)

    • Heat-treated to HRC 58-62 for maximum hardness

    • Precision grinding ensures tight tolerances and smooth operation

  • Optimized Compatibility

    • Perfect match with SUJ2 guide posts with collar

    • Designed for use with removable guide post systems

    • Interchangeable with standard industrial components

  • Enhanced Durability

    • Superior surface finish (Ra 0.8μm max) reduces friction

    • Excellent dimensional stability under high load conditions

    • Resists deformation in continuous operation

  • Technical Specifications

  • Material: SUJ2 equivalent bearing steel

  • Hardness: HRC 58-62

  • Surface Finish: Ra 0.8μm maximum

  • Standard Sizes: 10-50mm inner diameter

  • Length Range: 20-100mm

  • Tolerance: H7 grade standard

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.

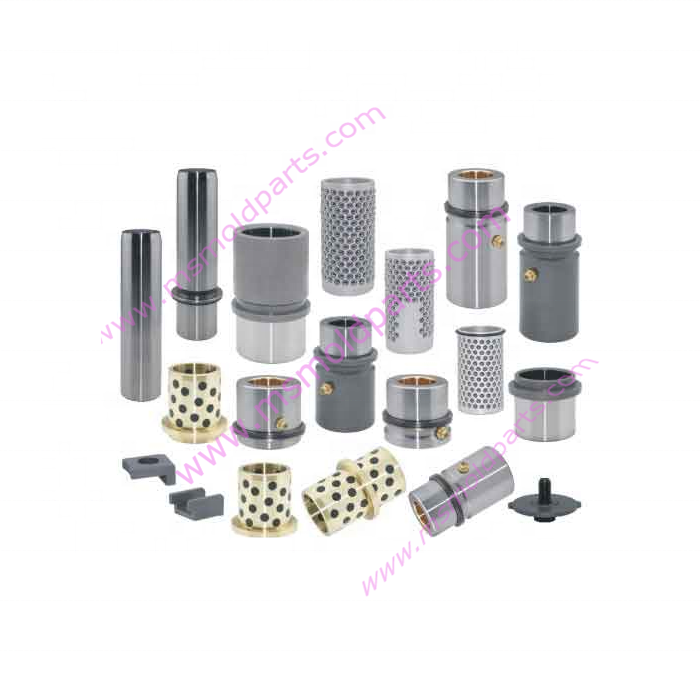

Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
