High precision the guidepost with durable danly guide pins made from GCr15 SUJ2 steel, ensuring excellent wear resistance and long service life for molds and dies.

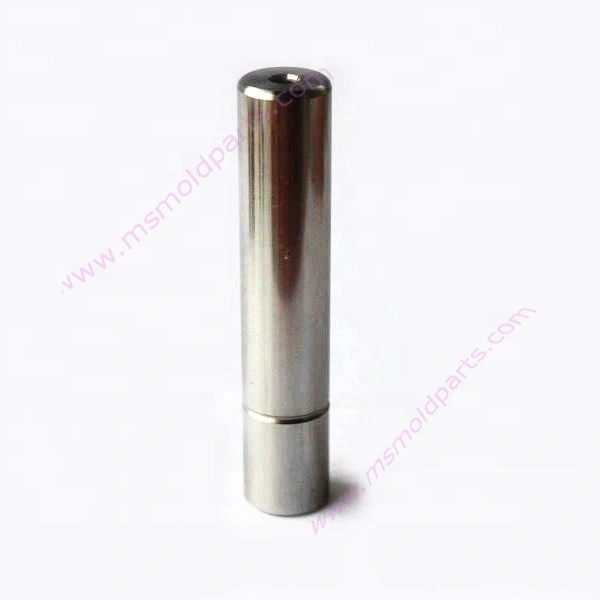

SUj2 straight guide pillar guide post guide pins

ms mold parts
The SUJ2 straight guide pillar / guide post / guide pins are made of high-quality bearing steel, offering excellent hardness, wear resistance, and precision. They are widely used in injection molds, stamping dies, and mechanical guiding systems to ensure stability and accuracy.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD9.00 / piece
Contact Now
add to cart
OurSUJ2 straight guide pillar guide post guide pins are designed for precision mold and die applications. Manufactured with GCr15 SUJ2 bearing steel, these guide pins offer high hardness, wear resistance, and durability. With compatibility to Danly guide pins standards, they ensure reliable alignment and stability during stamping and injection molding operations.

Key Features

  • Material Excellence: Made from GCr15 SUJ2, providing superior hardness, wear resistance, and long-lasting performance.
  • High Precision: Each guidepost is processed with strict tolerances to guarantee accurate positioning.
  • Compatibility: Designed to match Danly guide pins standards, making them versatile and interchangeable.
  • Surface Finish: Smooth finish to reduce friction, extend mold life, and ensure stable movement.
  • Durability: Strong resistance to deformation and impact, ideal for high-speed and high-volume production.

Applications

  • Widely used in stamping dies, injection molds, and precision tooling.
  • Ensures accurate alignment between upper and lower molds.
  • Suitable for automotive parts, electronics, and household product manufacturing.

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
