High Precision die punch

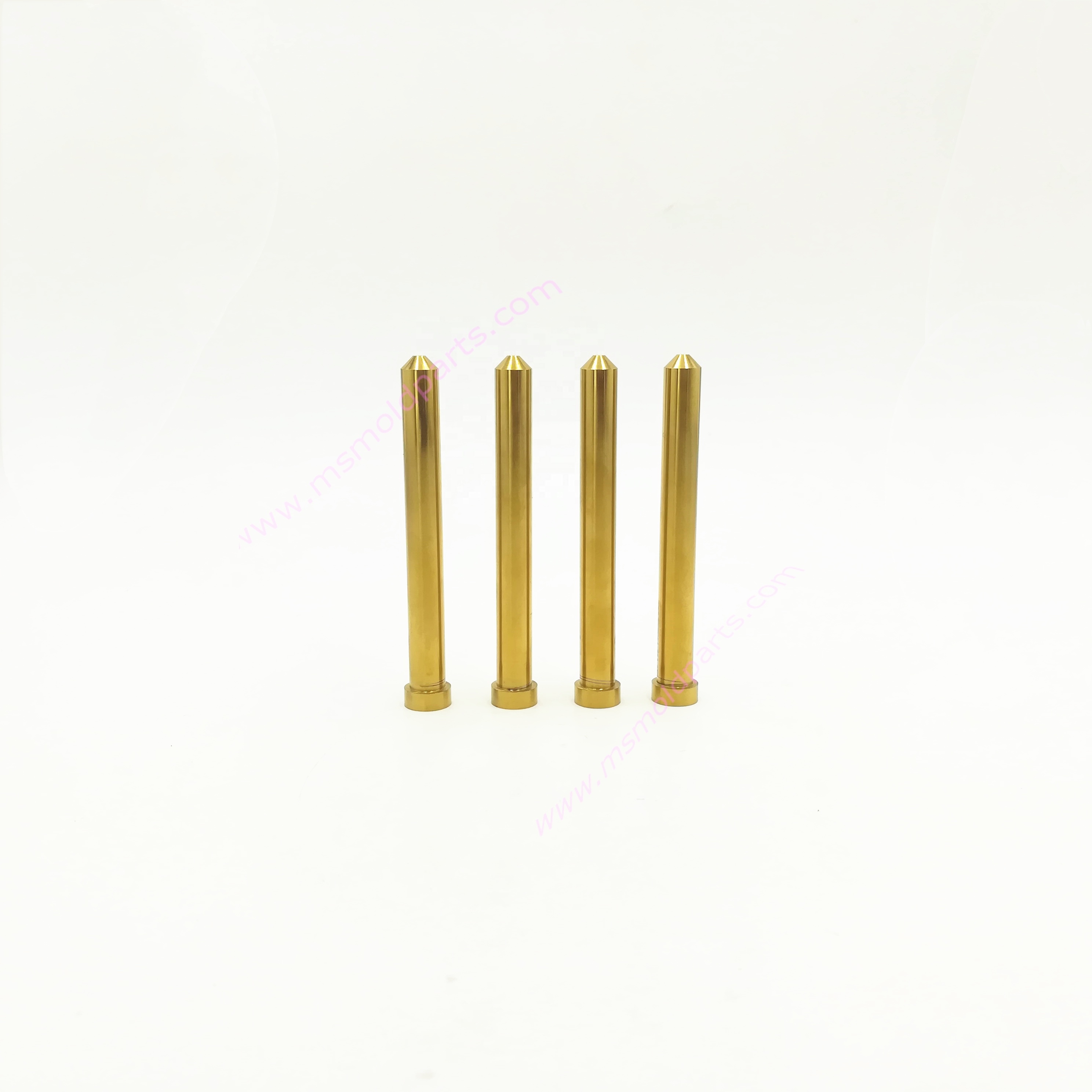

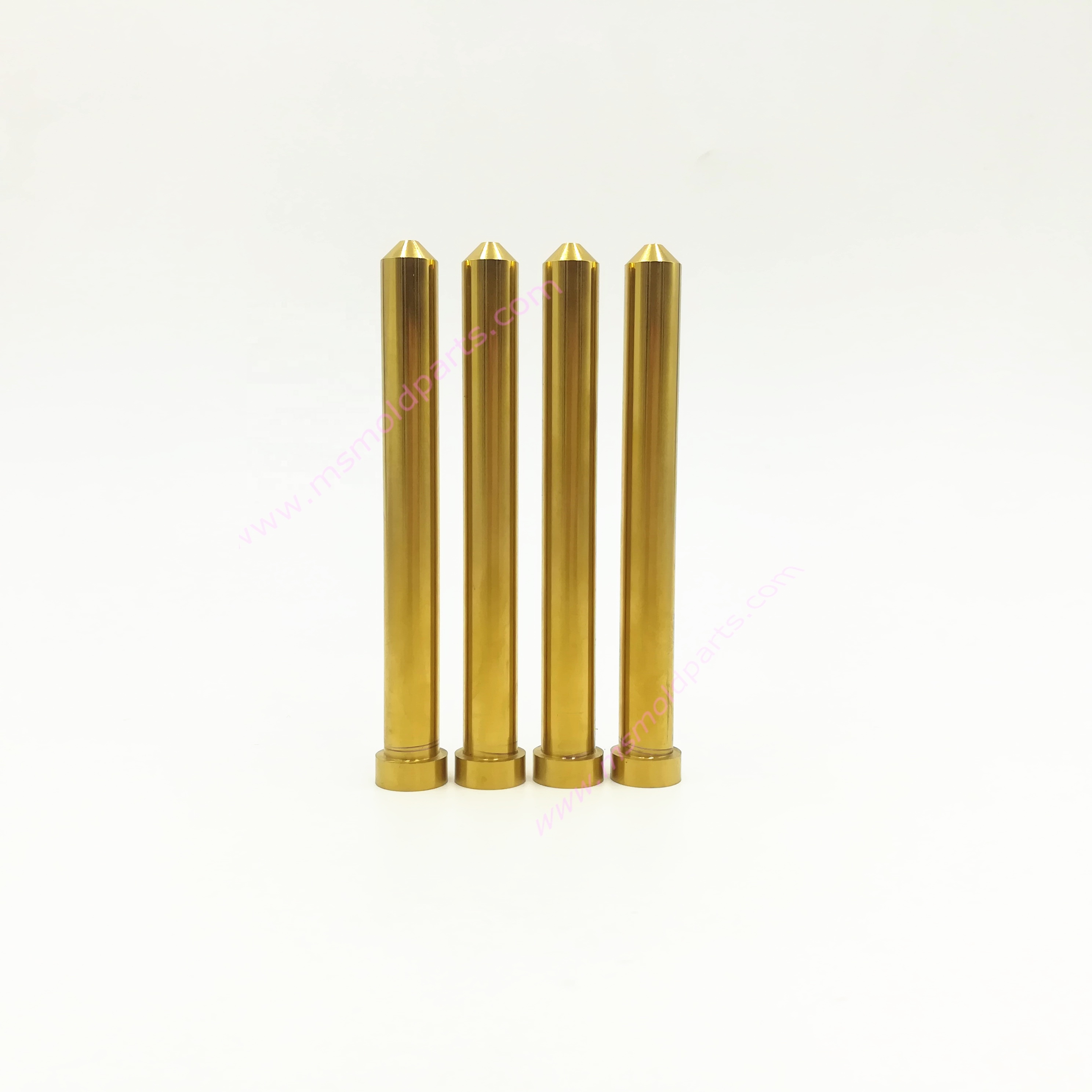

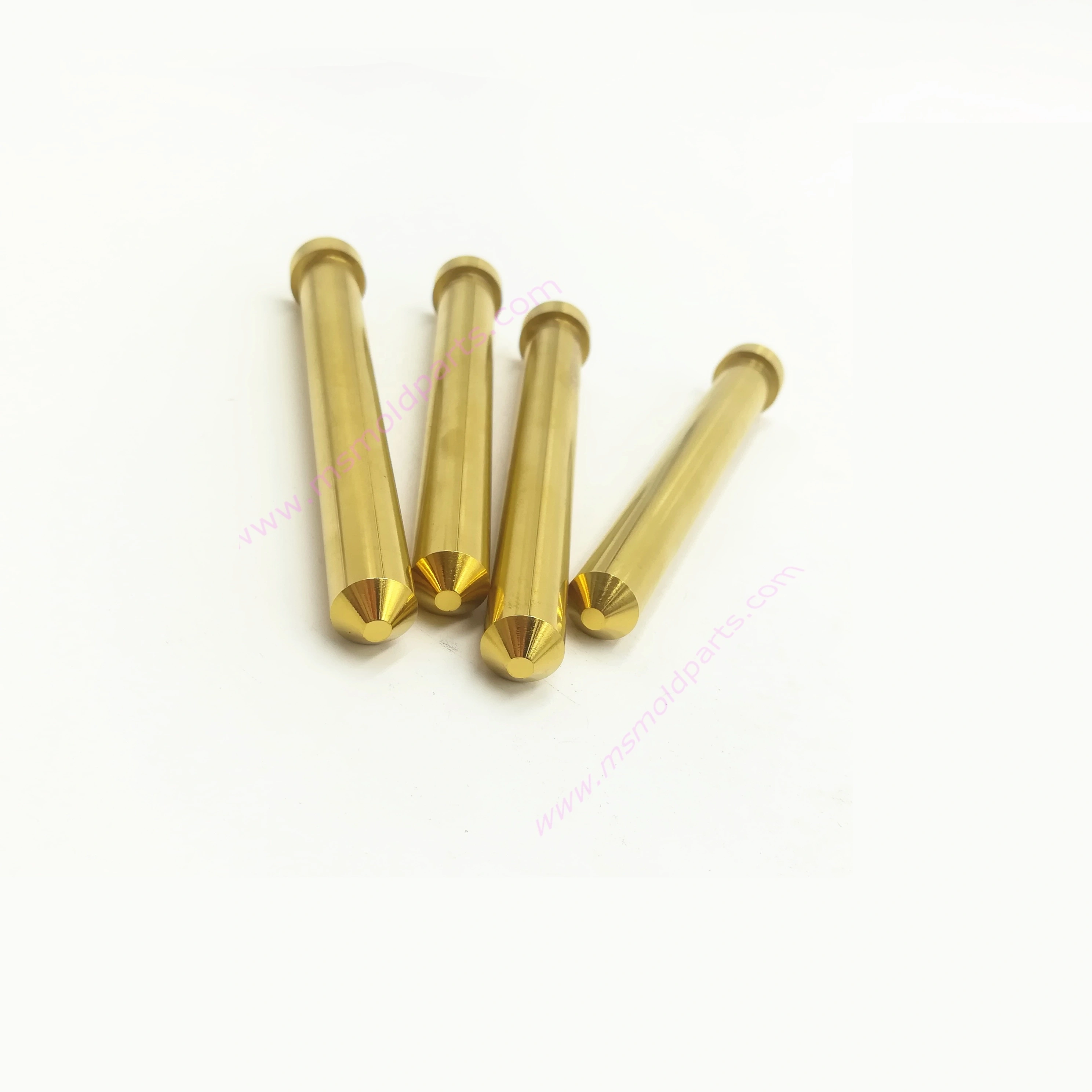

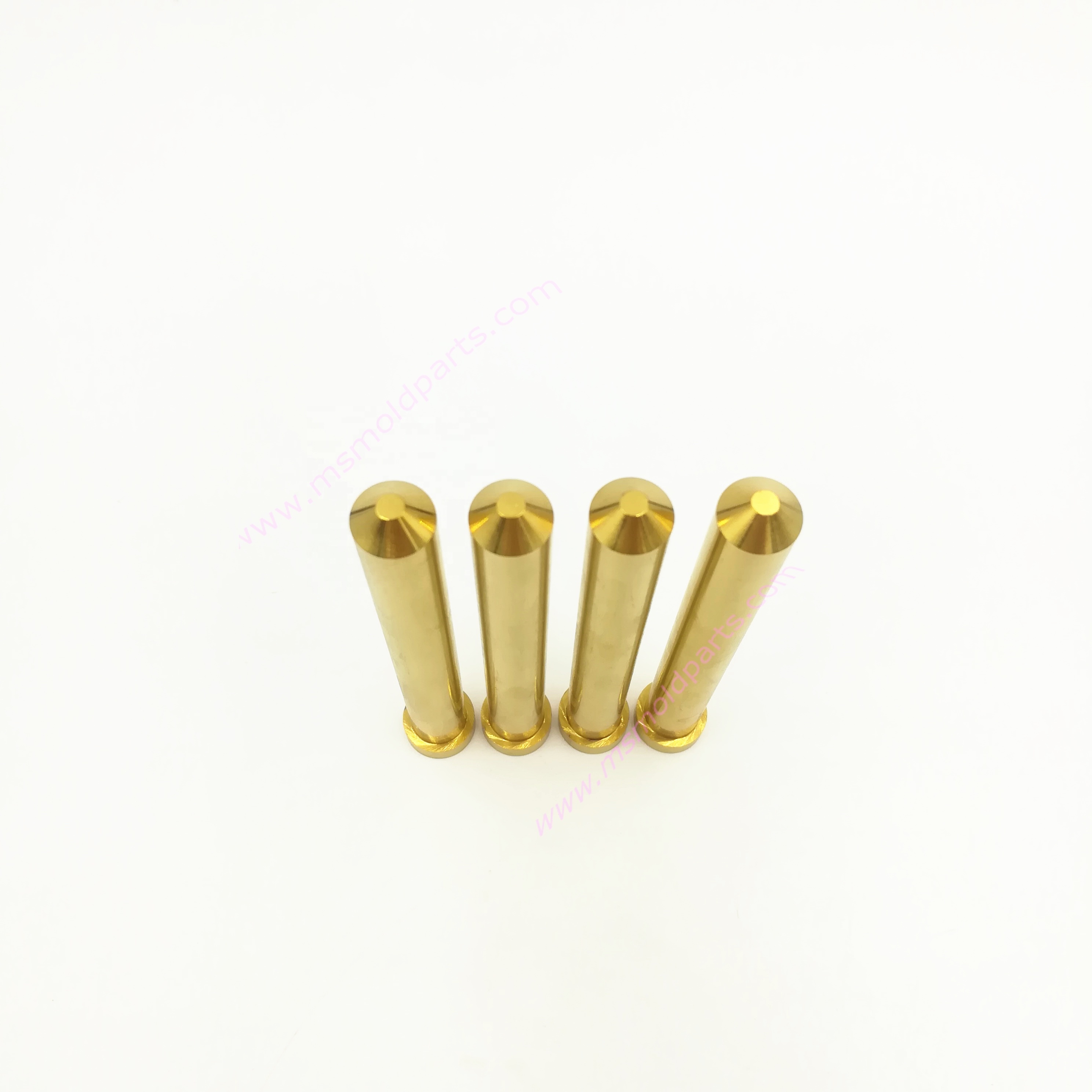

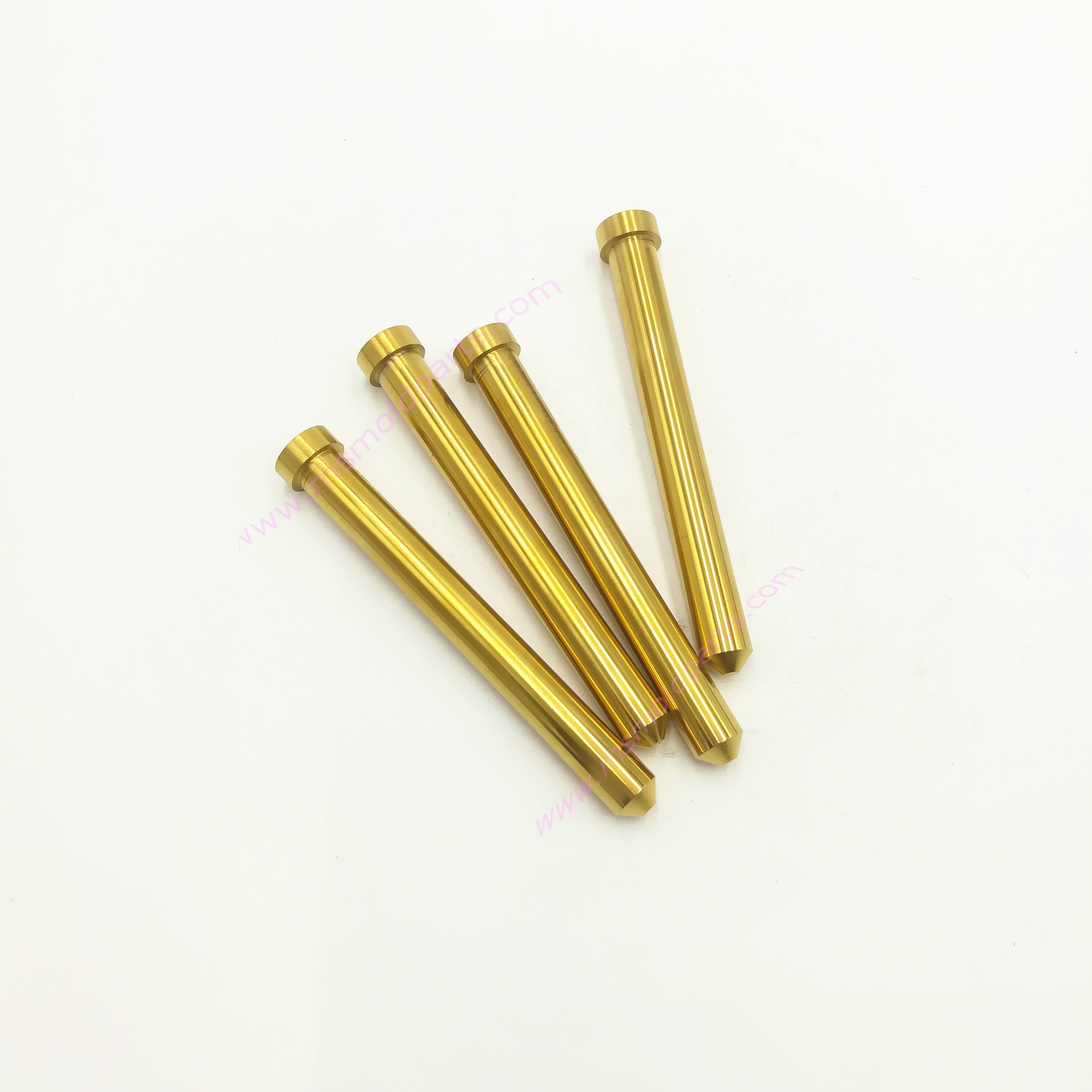

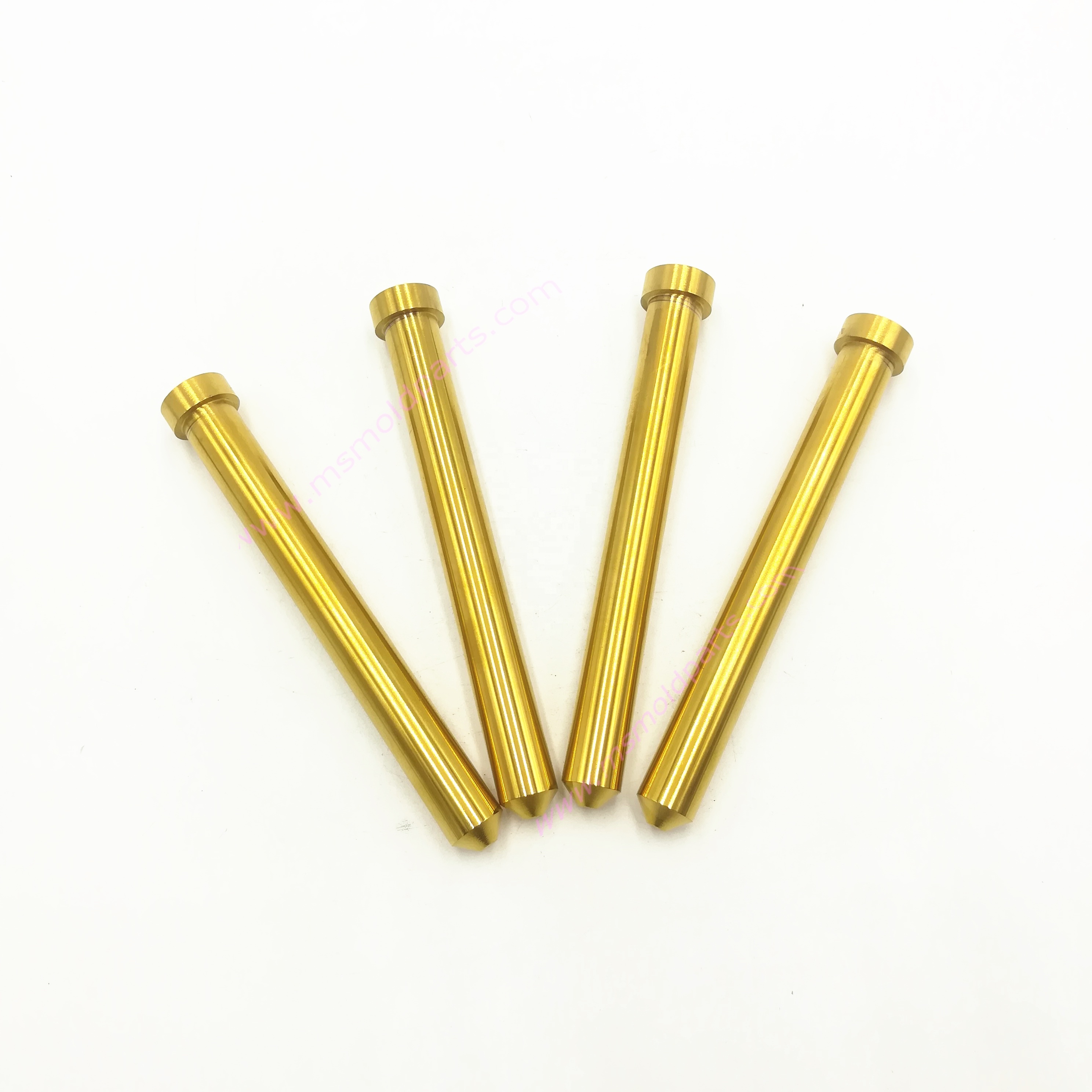

Tin coating punch pilot Press Die Component HSS cutting punch High Precision die punch

MS-Punch
An ultra-accurate tooling component made from hardened HSS or carbide, designed for micro-tolerance stamping, blanking, and piercing. Features mirror-grade surface finish, tight dimensional control (±0.002mm), and exceptional wear resistance for high-volume production of intricate parts
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD10.00 / piece
Contact Now
add to cart

  • Our Mould Precision Components represent the pinnacle of engineering excellence in tooling systems. This comprehensive range includes High Precision Die Punches and specialized Press Die Component HSS Cutting Punches, designed to deliver unmatched performance in demanding stamping, blanking, and precision cutting applications across various industries.

    Key Features

  • Ultra-Precision Manufacturing

    • Dimensional tolerances maintained within ±0.002mm

    • Micro-ground surfaces with Ra 0.1-0.2μm finish

    • Perfect concentricity and geometric accuracy

  • Premium Material Selection

    • High-Speed Steel (HSS M2/M35) for superior wear resistance

    • Powder metallurgy steel options for enhanced performance

    • Tungsten carbide variants for extreme wear applications

  • Optimized Performance Design

    • Specialized cutting edge geometries for different materials

    • Enhanced rigidity to prevent deflection under load

    • Custom configurations for specific application requirements

  • Technical Specifications

  • Materials: HSS (M2/M35), PM Steel, Tungsten Carbide

  • Hardness: HRC 62-65 (HSS), HRA 89-93 (Carbide)

  • Diameter Range: 0.5-50.0mm

  • Length Options: 20-200mm standard

  • Surface Finish: Ra 0.1-0.2μm

  • Standards Compliance: ISO, DIN, JIS

Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
