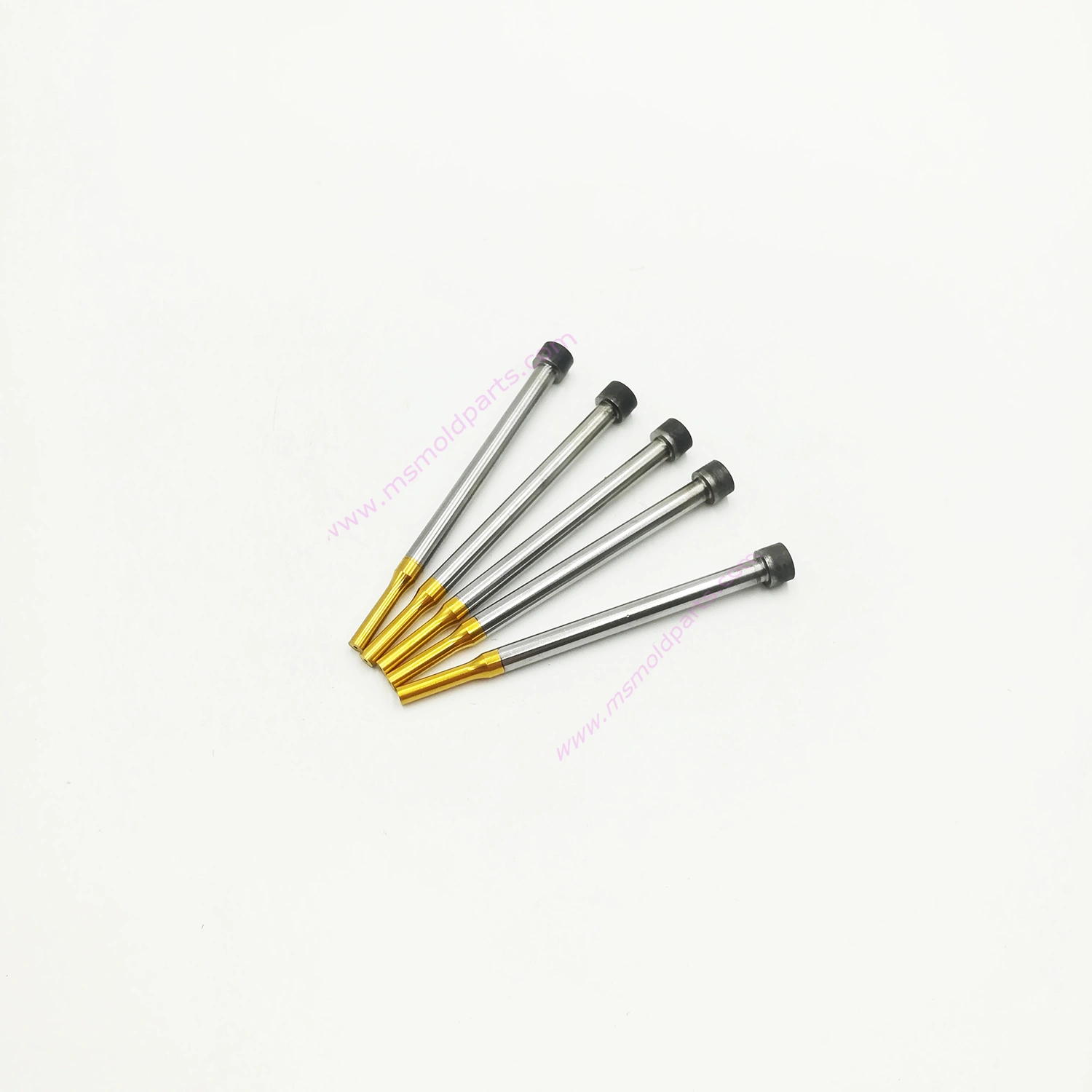

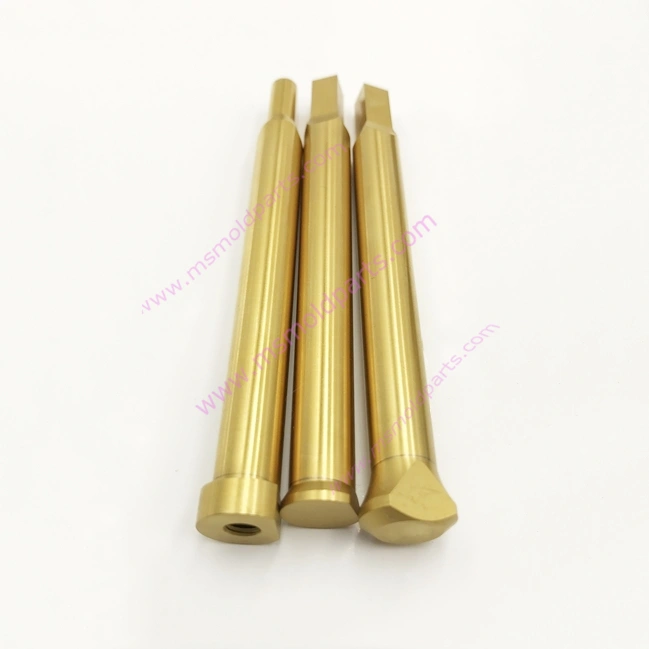

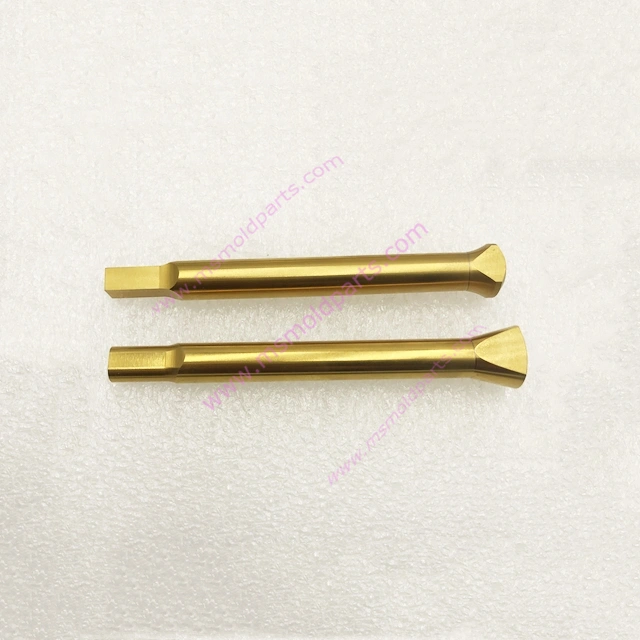

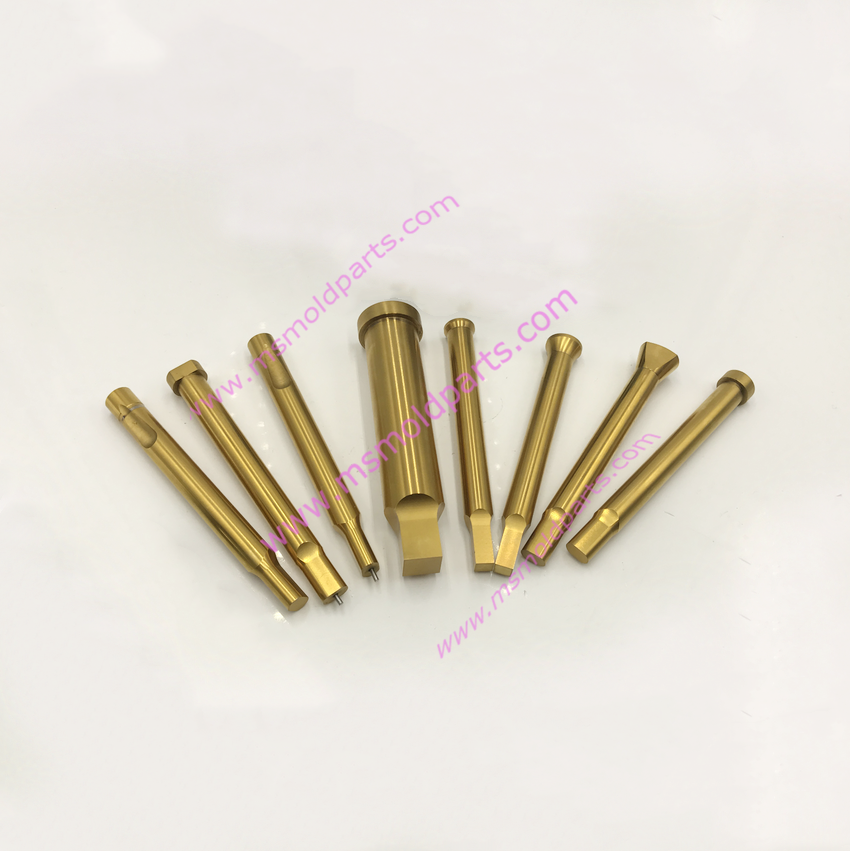

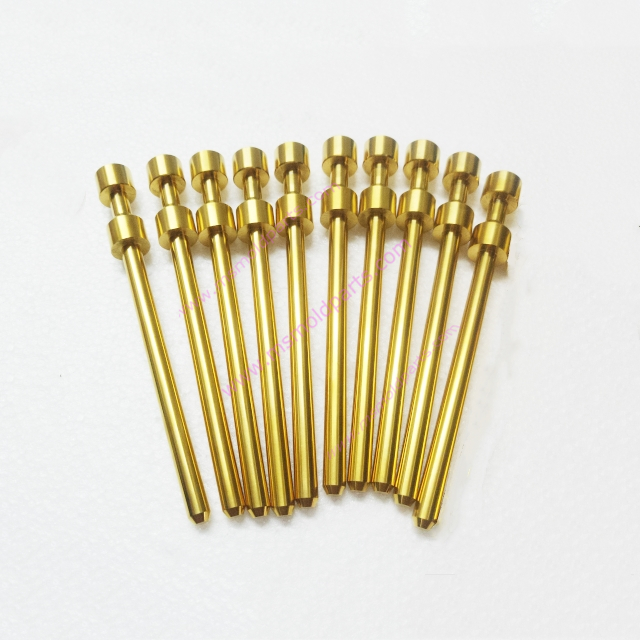

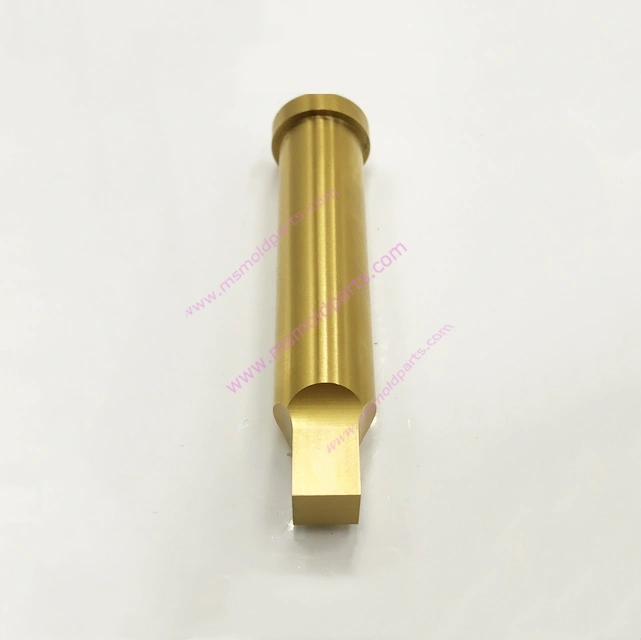

TIN COATING PUNCH PILOT PUNCH WITH DAYTON STNDARD
MS-Punch
High-performance TIN coating punch and pilot punch compliant with Dayton standard. Our TIN-coated punches offer superior wear resistance, precision, and durability for industrial punching and alignment applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD10.00
/ piece
Our TIN coating punch and pilot punch set are engineered to meet Dayton punch and die standards, ensuring exceptional precision and compatibility with industrial tooling systems. The tin plating on steel provides a hardened, low-friction surface that significantly extends tool life by reducing wear and material adhesion. Designed for alignment, guiding, and piercing operations, these punches are ideal for high-volume production environments such as automotive, aerospace, and metal stamping industries.
Key Features:
- TIN Coating Technology: The tin plating on steel offers superior surface hardness, corrosion resistance, and reduced friction for smoother operations.
- Dayton Standard Compliance: Fully compatible with Dayton punch and die systems, ensuring seamless integration and replacements.
- Pilot Punch Set Design: The pilot punch set includes multiple sizes for versatile alignment and guiding applications.
- Premium Steel Base: Made from high-grade tool steel, providing toughness and stability under high-stress conditions.
- Precision Manufacturing: Tight tolerances (±0.01mm) ensure accurate performance in critical punching tasks.
Applications:
- Metal stamping and piercing dies
- Alignment and guiding in progressive dies
- Automotive component manufacturing
- Aerospace and electronics assembly
- General industrial maintenance and tooling
Product Description
Specification
Material | Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect |
Standard | Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect |
Size | Depend on your drawings or products standard |
Place of origin | Dongguan, Guangdong, China |
Heat treatment | Available |
Surface Work | TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available |
Tolerance | + - 0.002mm |
Polishness | Close to Ra0.2 |
Hardness | Depends on material(HRC60~94) |
Delivery time | 3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc. |
Main Products | Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc. |
