nitrided ejector pin , din 1530 , oxidation coated ejector pin | Donguan MS Mold Parts Co.,Ltd

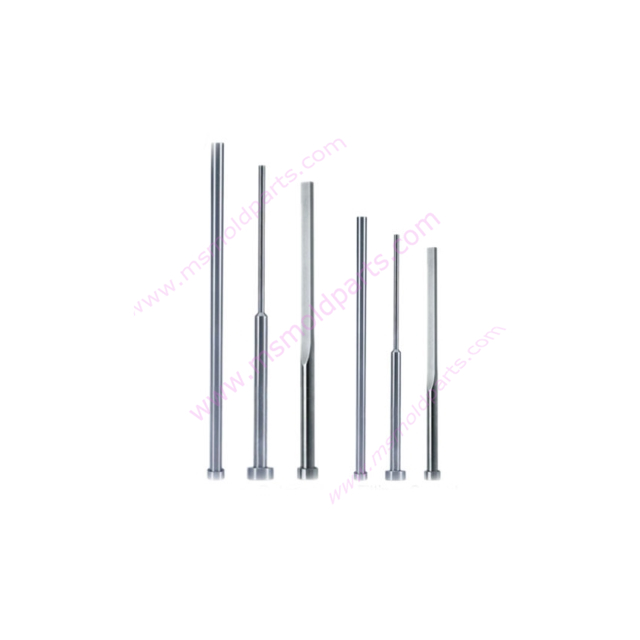

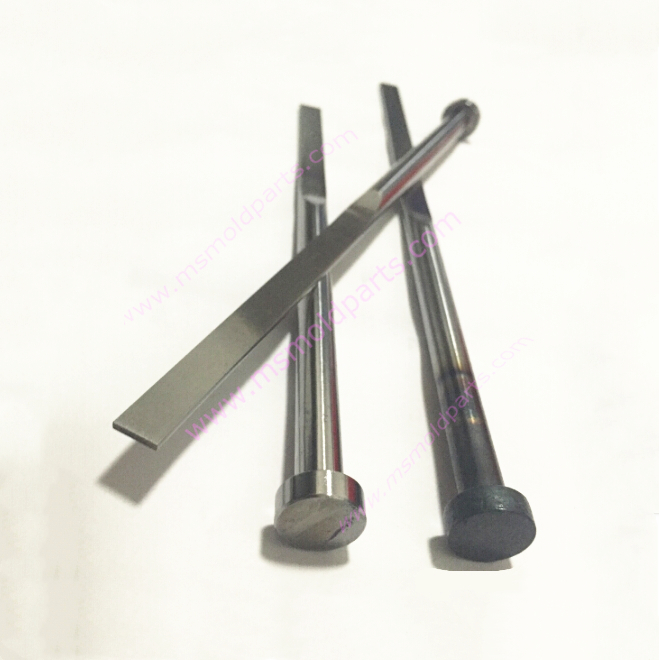

DIN 1530 F Blade ejector pin nitrided - oxidation coated meusburger standard ejector pins

ms mold parts
High-performance DIN 1530 F blade ejector pin with nitrided - oxidation coating, compliant with Meusburger standard ejector pins. Combines wear resistance and corrosion protection for demanding injection molding applications.
Delivery
FOB
minimum order
1 piece
Supply Ability
10000.0piece / Month
Country of Origin
ShenZhen GuangZhou
Quantity:
USD0.10 - USD20.00 / piece
Contact Now
add to cart
Our DIN 1530 F blade ejector pin is a high-performance nitrided ejector pin with an oxidation coated surface, designed to meet Meusburger standard ejector pins specifications. This DIN 1530 compliant ejector pin combines the durability of nitriding with the corrosion resistance of oxidation coating, making it ideal for demanding injection molding applications. The blade design ensures efficient ejection of complex parts, while the dual coating extends service life in abrasive or corrosive environments.

Key Features:

  • Nitrided Ejector Pin: The nitrided ejector pin core provides exceptional hardness (900-1,200 HV) and wear resistance, reducing deformation under high stress.
  • Oxidation Coated Ejector Pin: The oxidation coated ejector pin surface adds a layer of corrosion protection and friction reduction, ideal for harsh molding conditions.
  • DIN 1530 Compliance: Fully compliant with DIN 1530 standards, ensuring precise dimensions and compatibility with European mold systems.
  • Meusburger Standard Ejector Pins: Directly interchangeable with Meusburger standard ejector pins, simplifying integration and maintenance.
  • Blade Geometry: Optimized for ejecting thin-walled and complex parts with minimal surface marks.

Applications:

  • Injection molding of automotive parts (e.g., electrical connectors, structural components)
  • Electronics and consumer goods molding where surface quality is critical
  • Medical and packaging industries requiring corrosion-resistant ejector pins
  • High-volume production with abrasive materials (e.g., glass-filled polymers)
  • Meusburger-compatible mold systems
Product Description
Specification
Material
Carbide,ASP23,Vanadis,CPMRTXM4,SKD11,SKD61,HSS,A2,M2,D2,SUJ2,S45C,ect
Standard
Dayton,Lane,DIN,ISO,MISUMI,EDM,FIBRO,MOELLER,HASCO,ect
Size
Depend on your drawings or products standard
Place of origin
Dongguan, Guangdong, China
Heat treatment
Available
Surface Work
TiCN, TiN, Aitain, Ticrn, nitriding , Black oxygened, Black coating etc available
Tolerance
+ - 0.002mm
Polishness
Close to Ra0.2
Hardness
Depends on material(HRC60~94)
Delivery time
3-5 Working days, depends on the quantity the order. Express by DHL, UPS, FEDEX, TNT or Ocean Shipping etc.
Main Products
Guide elements, punch pin, die button, ejector pin and sleeve, oilless bush, etc.
